Xone:96 Send / Return system. Connecting a Boss DD-7 pedal
Option 1; Mono, effect only, output (100% wet).

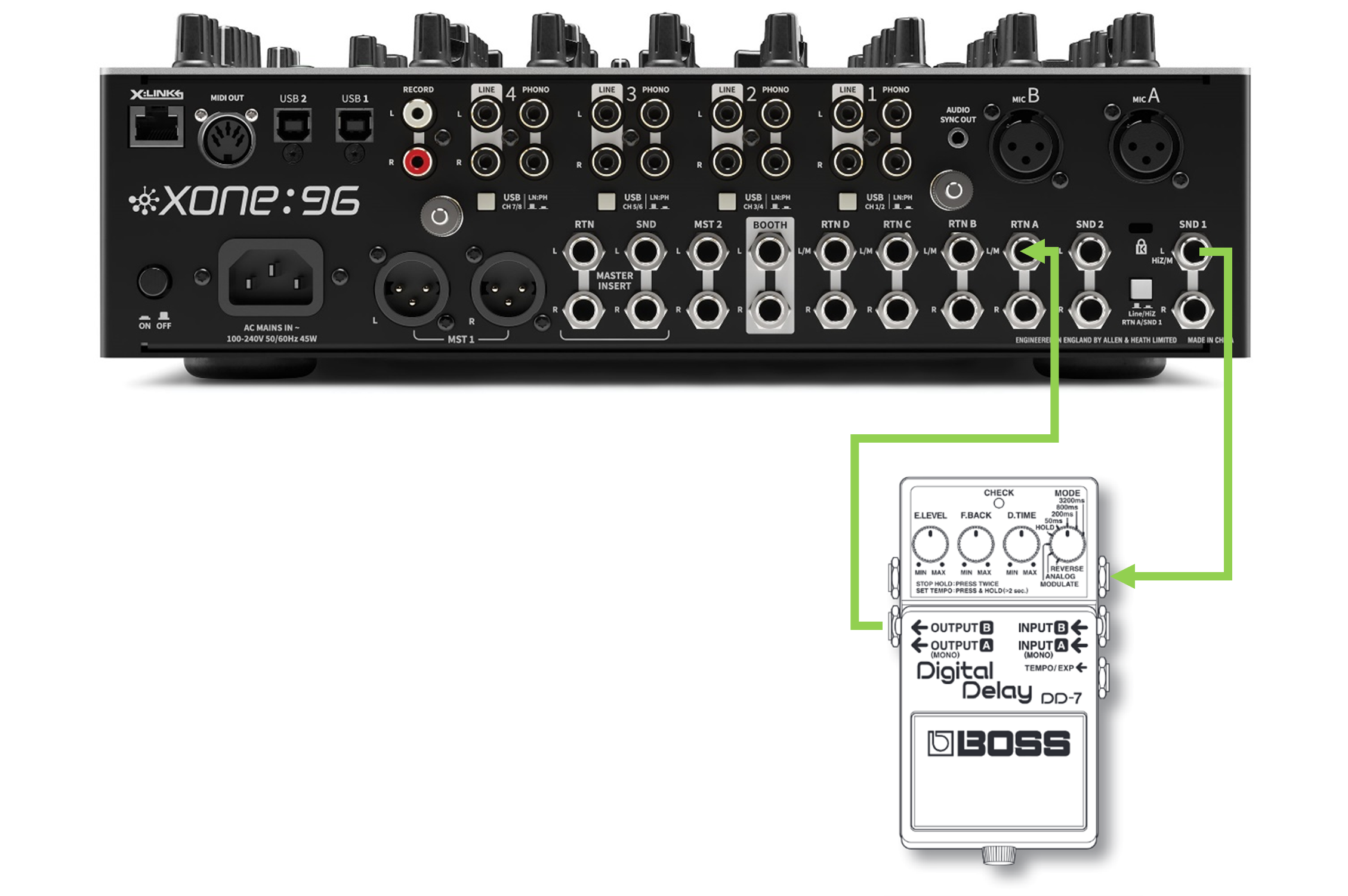

• Connect a ¼” (6.35mm) mono (TS) Jack cable from the SND 1 (or SND 2) L/M socket of the mixer, to INPUT B of the Boss DD-7.
• Connect ¼” (6.35mm) mono (TS) Jack cables from OUTPUT A of the Boss DD-7 to the L/M RTN A (or RTN B) socket on the mixer.
• Set the corresponding Xone:96 Input Channel (A or B) source to RTN.

• Set E.LEVEL on the pedal at @3 o’clock and adjust the mix channel SEND (1 or 2) and Input Channel (A or B) GAIN controls for unity gain.
• Use the channel SEND controls to adjust the signal sent to the FX pedal, and Input Channel (A or B) fader to balance the FX output level with the main mix.

NOTES:
A variety of different outputs can be achieved by changing how the connections to the DD-7 are made. When connected as described above, the output of the DD-7 is the effect signal only (100% wet).
No direct (dry) signal is output by the pedal.
This is the only 100% wet configuration available for this pedal.

SEND 1 can be se to pre- or post-fade for each channel (as desired).
Post-fade is typically used for Sends to dealy effect devices
