iLive. Hard reset & memory location

  • Updated

Aim: To reset mixer information and passwords.

Tools:          T10.  mceclip3.png  Module extraction tool Requirements:

  • Removal of iLive CPU module. Refer to iLive service document 08
  • Removal of iDR10 CPU module. Refer to iLive service document 08

Reset procedure

  1. Power OFF.
  2. Remove CPU module. Refer to iLive service document 2.08

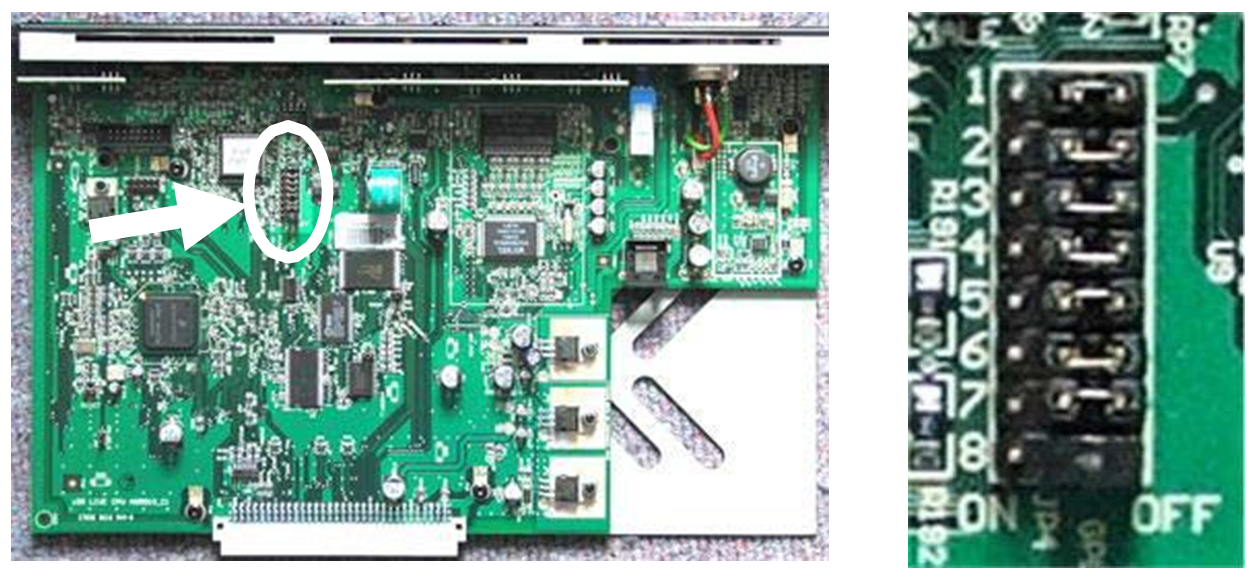

  3. Locate jumper bank JP4. During normal operation, all jumpers should be OFF

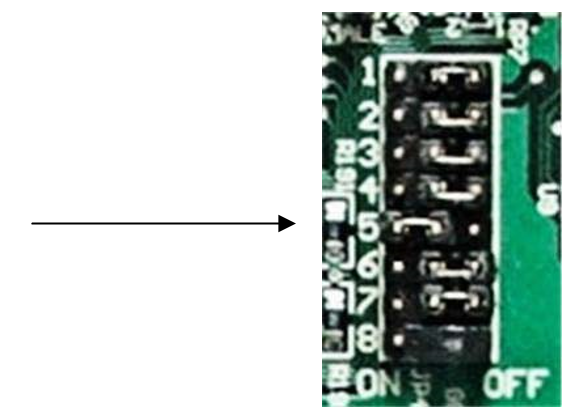

  4. Put appropriate jumper link to ON position. This picture shows J5 ON to reset mixer settings.
  5. Replace CPU module.
  6. Power ON and allow unit to fully boot.
  7. Power OFF.
  8. Remove CPU module.
  9. Replace jumper link to OFF position.
  10. Replace CPU module.
  11. Power ON and allow the unit to fully boot.
  12. The desired reset is now complete.

The following lists jumper function and memory locations.

Jumper links

J5 Resets mixer settings

  • Processing - current settings [iDR10 CPU]
  • Strip assignments [i-Live CPU]

J6 Clears all scenes [Both i-Live and iDR10 CPU]



J7 Clears configuration sector

  • Input setup – mono and stereo channel settings [MixRack CPU]
  • Mix configuration [MixRack CPU]
  • Buss configuration [MixRack CPU]
  • Reset user profiles
    • User names
    • User passwords
    • User permissions
    • User default power-up scene
  • IP address [Both i-Live and MixRack CPU]

J8 Reset user profiles. Up to→ V1.32 J8 on the SURFACE CPU

                                                      V1.40 → J8 on the MIXRACK CPU

  • User names
  • User passwords
  • User permissions
  • User default power-up scene



Memory location

Scene – Both MixRack and iLive. MixRack Settings stored in MixRack. Strip assignments, local mic pre and local digital source select are stored in iLive. Cleared by J6.

Show – Stored on SBC on compact flash or USB.

FX – Stored as Libraries on SBC compact flash or USB. Current settings are saved in the scene (see above).

Permissions –iLive – Flash (Config Sector) Cleared by J8 OR J7 see notes above.

Processing – (Current Settings) Stored in battery-backed SRAM – MixRack CPU PCB. Cleared by J5.

User profiles – iLive – Flash (Config Sector) Cleared by J8 OR J7 see notes above..

IP – Both MixRack and iLive – Flash (Config Sector) Cleared by J7. Also on SBC compact flash.

Event log – Both MixRack and iLive in BB SRAM.

Preferences. Most are stored locally to the host they affect.

Date/time. MixRack and iLive, Clock Chip on CPU PCB. SBC compact flash. All set using SBC.

Mix Configuration – MixRack – Flash cleared by J7

Bus Configuration - MixRack – Flash cleared by J7

Strip assignment – iLive BBSRAM cleared by J5
