Replacing Xone:PX5 Faders

Print to PDF

Replacing the Faders

Channel and cross-faders subject to excessive ‘wear and tear’, or extensive use, over time will require replacing. Intermittent or noisy operation is an indication of faders becoming worn. Using a propriety fader cleaner, such as CaigLube, DeOxit, etc. may temporarily restore use, but DO NOT use on new faders as this can displace factory applied finishes.

REPLACING THE FADERS

IMPORTANT NOTES:

Warning! Please read the following steps in full BEFORE starting work.

If you are unsure of your ability to safely carry out the procedure described, it is advised that you contact an authorised Allen & Heath agent for local service assistance by a qualified technician. Please contact your mixer retailer, or local authorised Allen & Heath agent, for more information:

www.allen-heath.com/where-to-buy

Ensure that the power switch on the rear panel is set OFF and that IEC mains cable is disconnected from

the AC mains supply BEFORE opening the unit.

Have a clean flat work surface ready before starting work.

Tools you will need:

  • T8 Torx screwdriver
  • Pliers
  • A small container for retaining screws

Ensure erroneous objects, such as cover screws etc. do not fall into the chassis or through louvres during disassembly, and check to make sure none are loose inside the unit BEFORE reassembling.

To replace Faders

ONLY use spare part components approved by Allen & Heath for replacement.

Please contact your mixer retailer, officially authorised Allen & Heath spares supplier, or local authorised Allen & Heath agent to order spare A&H parts: www.allen-heath.com/where-to-buy

To replace the factory standard Allen & Heath Alpha Channel Fader, order; A&H spare part-code:

004-852X - XONE:PX5 CH FDR SPARE

To replace the factory standard Allen & Heath Alpha cross-fader, order; A&H spare part-code:

004-853X - XONE:PX5 XFDR SPARE

The innoFADER Pro2, from Audio Innovate, is also fully compatible as a cross-fader upgrade for the XONE:PX5. For details of innoFADER Pro2 stockists, and setup and calibration options, please visit the innoFADER website: www.innofader.com

Step 1:

  • Ensure power switch on the mixer’s rear panel is turned OFF.
  • Disconnect the mains cable from AC mains supply and mixer’s IEC socket.

Step 2:

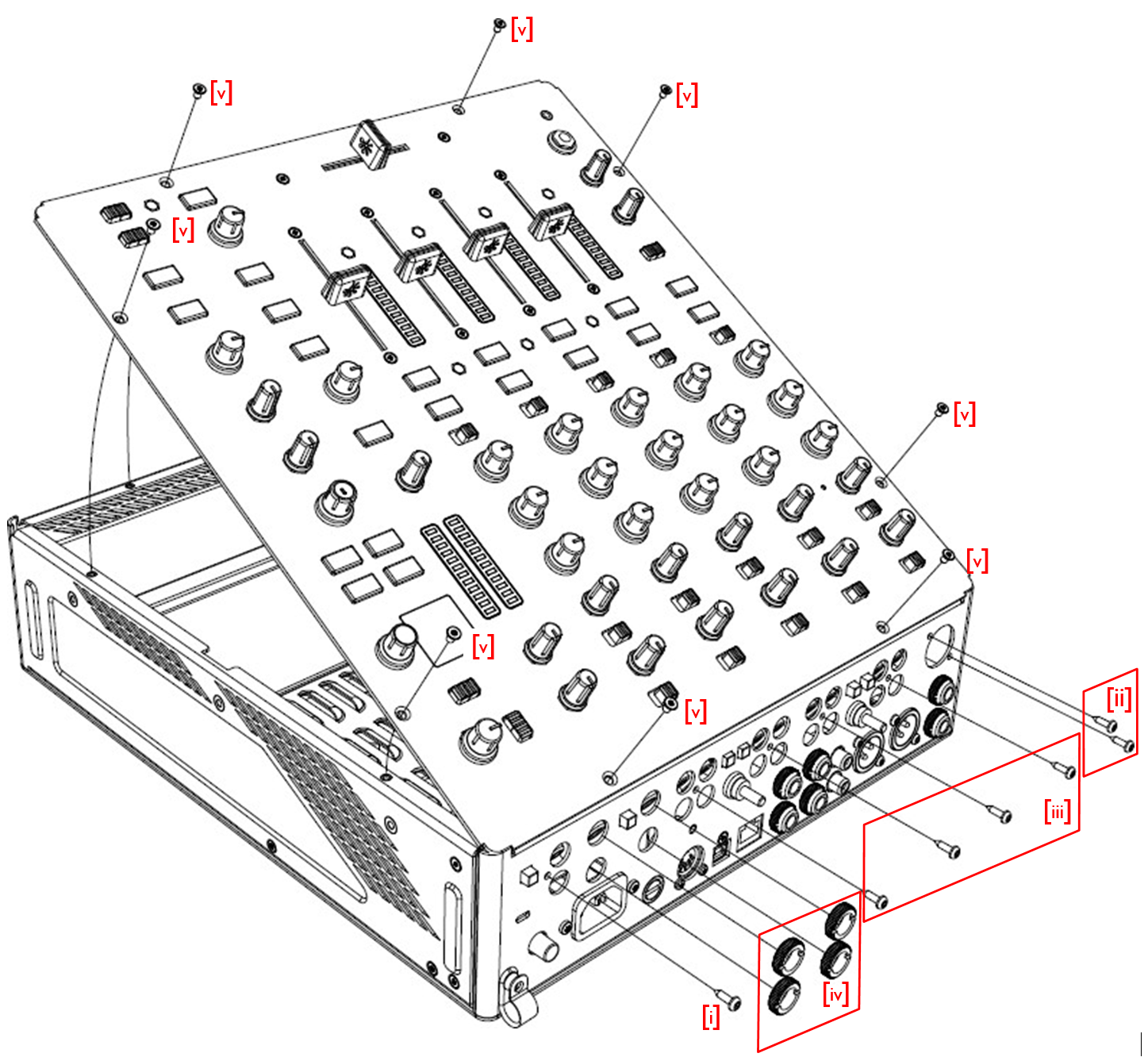

  • Remove and retain 1 Torx screw securing, RECORD, RCA sockets to the rear panel [i].
  • Remove and retain 2 Torx screws securing the rear panel MIC, XLR socket [ii].
  • Remove and retain 4 Torx screws between LINE and PHONO RCA sockets on rear panel [iii].
  • Remove and retain 4 circular nuts securing, EXT RTN / FX SEND, 6.35mm (¼“) Jack sockets [iv].

Step 3:

  • Remove and retain 8 Torx screws securing top panel to the mixer chassis [v].

Step 4:

  • Lift the front edge of the top panel up from the chassis, as illustrated above, to access and disconnect the internal harnesses (see below).

NOTE: Do not yet attempt to completely separate the top panel and chassis.

Step 5:

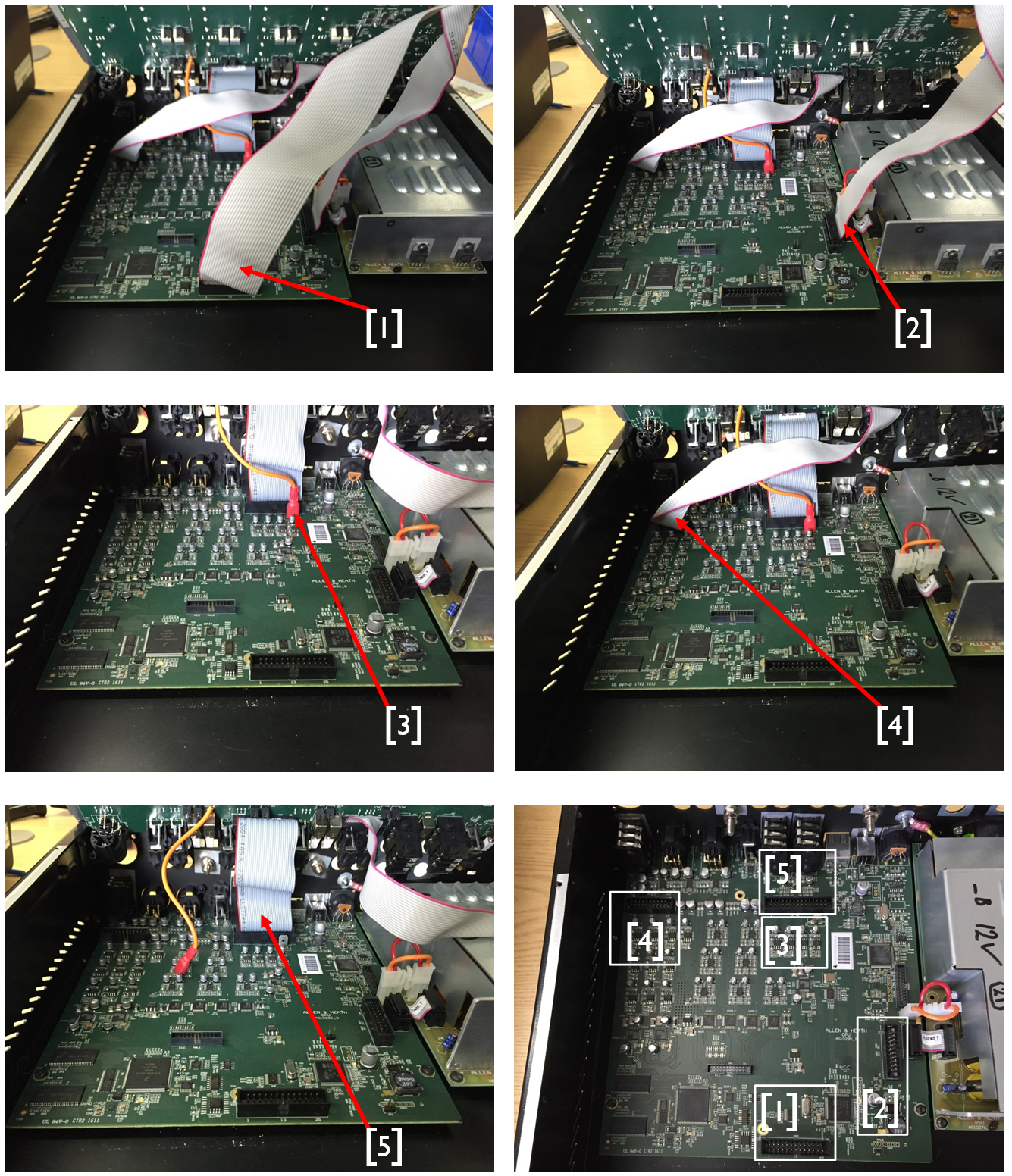

  • With care, unplug 4, grey, flat harnesses and 1, orange, wire-form connecting the main top panel PCBA to the PCBA fixed to base of the mixer chassis, following the order shown below;
  • The top panel can now be lifted away and separated from the chassis.
  • Place the top panel face-down on a clean surface, taking care not to damage harnesses.

NOTE: when re-assembling the mixer, take great care to refit harnesses in correct positions and to ensure that connectors are fully fitted into their corresponding sockets.

Step 6: To replace the cross-fader

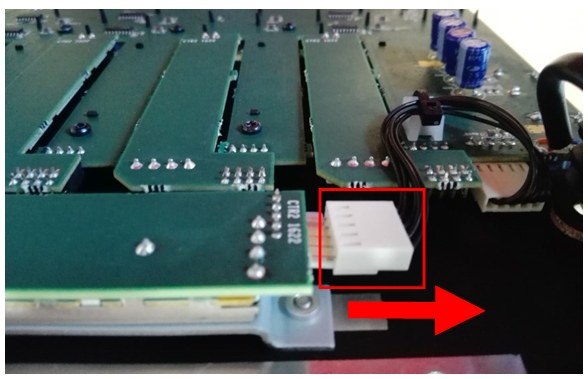

  • With care, disconnect the black wire-form connecting cross-fader to the main PCBA.

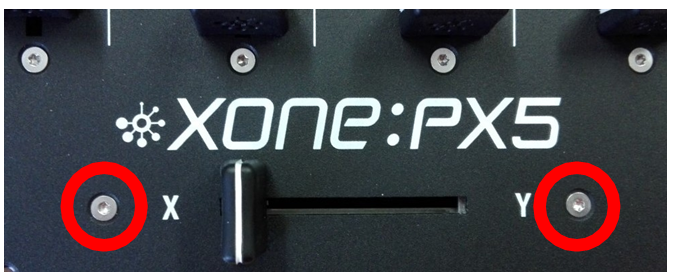

  • Turn the top panel face up. Remove and retain 2 screws securing cross-fader tray to top panel
  • Take the knob off the cross-fader shaft to remove the tray clear from the top panel

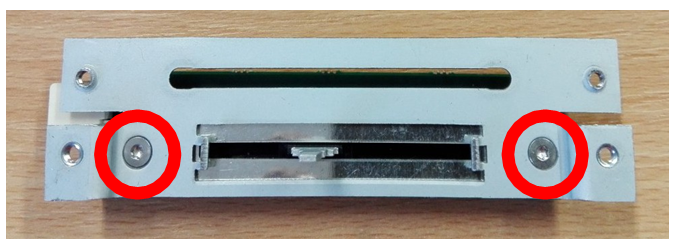

  • Remove and retain 2 screws securing the cross-fader PCBA to the tray

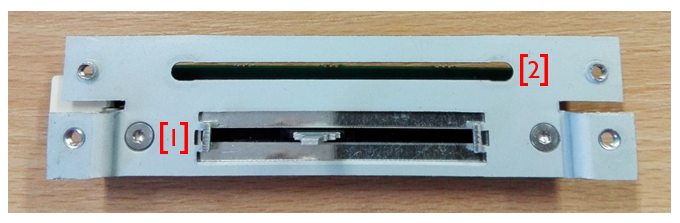

  • Fit the new replacement cross-fader PCBA to the bracket as shown below; slot [1]. The standard cross-fader must be fitted to slot [1] and not slot [2].

The longer slot [2] is for mounting the optional innoFADER Pro2 (not supplied).

  • Screw the cross-fader plate back to the console.
  • Replace the cross-fader knob.
  • Re-connect the black wire-form from connecting cross-fader to the main PCBA.
  • Reassembly of the mixer is the reverse of Steps 1 - 5, detailed above.

NOTE: when re-assembling the mixer, take great care to refit harnesses in correct positions (shown in Step 5 above) and to ensure that connectors are fully fitted into their corresponding sockets.

Step 7: To replace the channel faders

  • Remove the cross-fader tray prior to replacing channel fader/s, as described in Step 6 above.

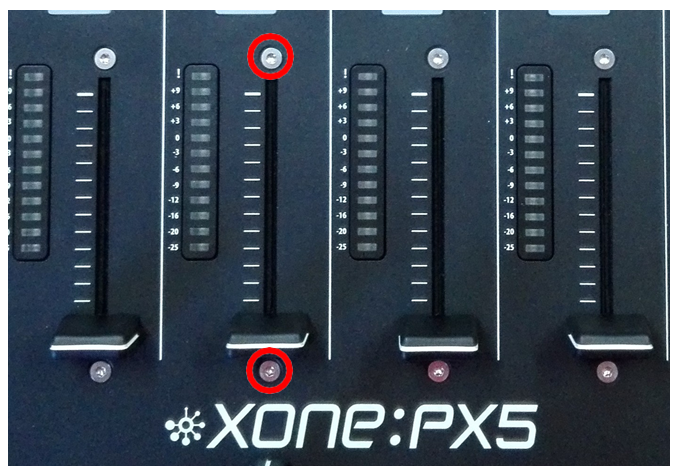

  • Remove and retain 2 screws securing the channel fader PCBA.

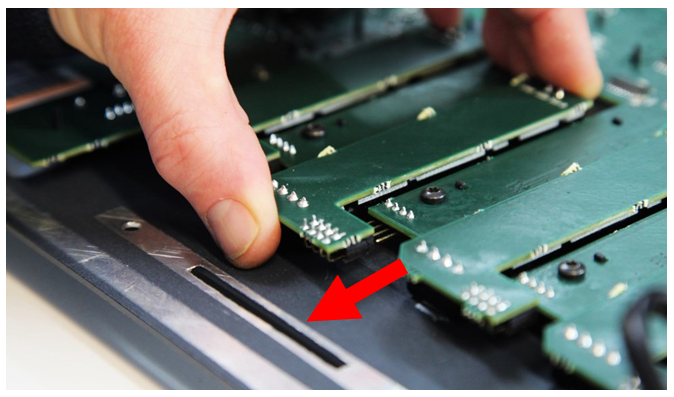

  • Turn the top panel over and slide the Channel Fader PCBA away from its connection to the main top panel PCBA as shown.
  • Take the cap off the Channel Fader shaft to remove the assembly clear from the top panel.

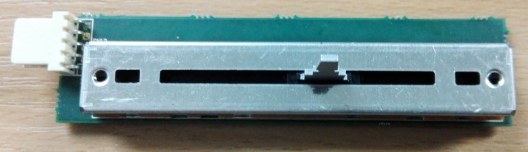

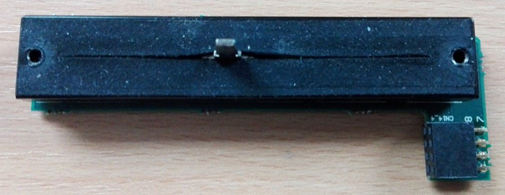

  • Fit the new replacement Channel Fader assembly to the main top panel PCBA.

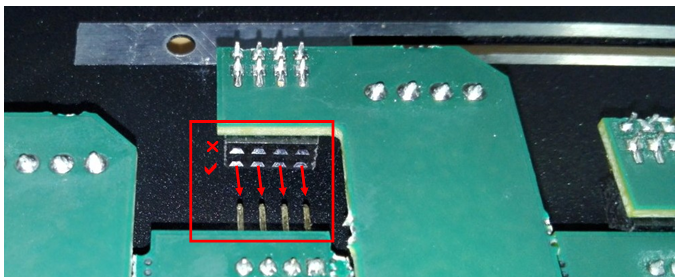

  • Ensure that pins on the main top panel PCBA fit correctly to the Channel Fader PCBA connector, as illustrated below.
  • Turn the top panel over, replace the Channel Fader knob.
  • Screw the Channel Fader back to the top panel.
  • Refit the cross-fader tray back to the console and replace the cross-fader knob.
  • Re-connect the black wire-form connecting cross-fader to the main PCBA.
  • Reassembly of the mixer is the reverse of Steps 1 - 5, detailed above.

NOTE: when re-assembling the mixer, take great care to refit harnesses in correct positions (shown in Step 5 above) and to ensure that connectors are fully fitted into their corresponding sockets.

For more information, please visit our website: www.allen-heath.com
