In some cases it's useful to do a full factory reset of the MixRack.

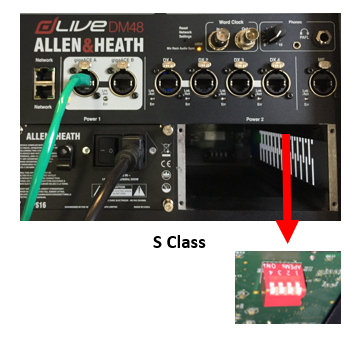

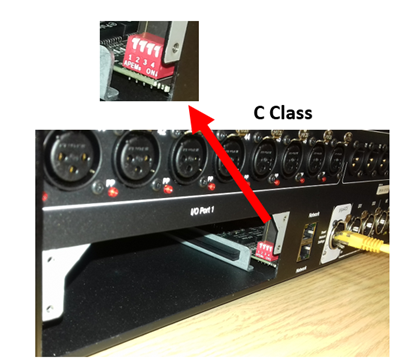

This is done by accessing a set of 4 DIP switches, inside the I/O port on the C Class, or inside Power 2 on the S Class (see photos)

• Reset occurs with Switch 1 in ON position and rack powered on until the READY LED illuminates
• After READY LED illuminates, turn off MixRack and move Switch 1 back to OFF position.
• Switch 1 should be left in OFF position for normal operation

Switch 1 – Reset Current Settings - not network or scenes
Switch 2 – keep OFF
Switch 3 – keep OFF
Switch 4 – keep OFF
