The following readings are when the master meter is reading 0dB.

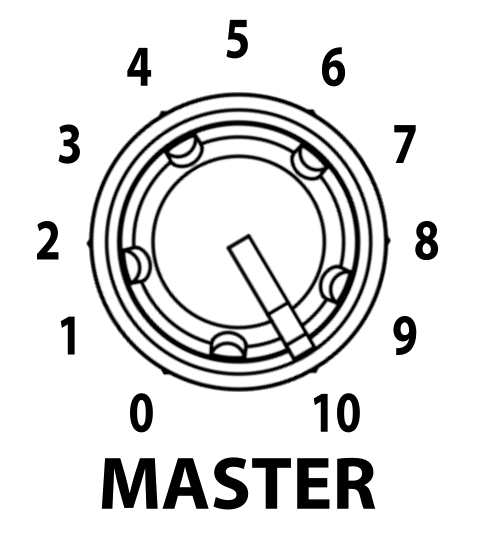

With the level control fully clockwise (10). Set here the balanced XLR output will be running at +4dBu.

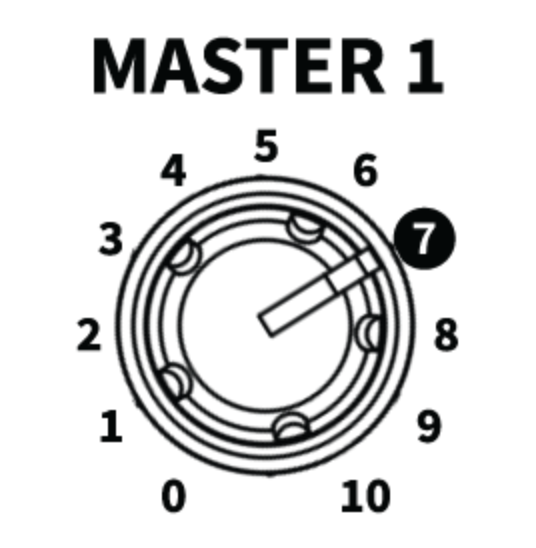

The number 7 on the dial is marked black, this is to indicate where unity is (0dB) in reflection to the mix bus VU meter. This is the same for both Master 1 & Master 2 outputs.

The following readings are when the master meter is reading 0dB.

With the level control fully clockwise (10). Set here the balanced XLR output will be running at +4dBu.

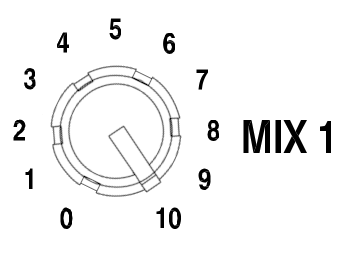

Unity (0dBu) is around 3 o’clock (8 on the dial).

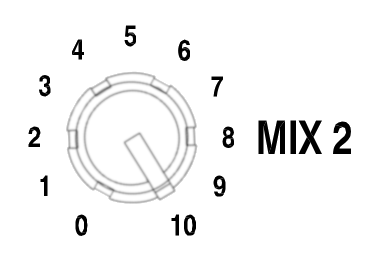

Mix 2 runs at +4dB around 3 o’clock (8 on the dial). and +8dBu at max (10 on the dial).

The following readings are when the master meter is reading 0dB.

With the level control fully clockwise (10). Set here the balanced XLR output will be running at +4dBu.

Unity (0dBu) is around 3 o’clock (8 on the dial).

The following readings are when the master meter is reading 0dB.

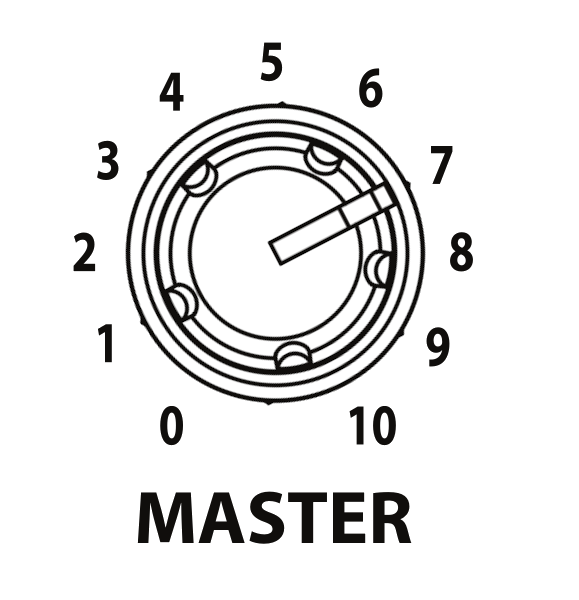

On 43/43C master level, around 7 the main balanced XLR output will be running at +4dBu.

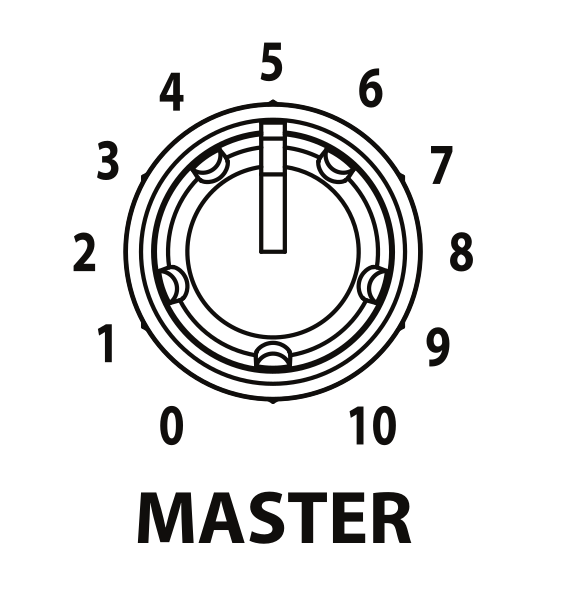

Unity (0dB) is around noon (5 on the dial).

With the Master level at max (10), the outs will be running at +16dBu!

The following readings are when the master meter is reading 0dB.

On the 23/23C master level, around 7 the main balanced XLR output will run at +4dBu.

True unity is around 12 o’clock or 5 on the dial.

With the Master level at max (10), the outs will be running at +16dBu!

The following readings are when the master meter is reading 0dB.

Unity on M1 & 1.4 Master 1 is around 3 o’clock (two notches below max) on the level dial. Set here the main balanced XLR output will be 0dBu. At Max, it will be running at +6dBu.

Master 2 is marked with a zero to show where unity is. At Max, it will be running at +12dBu.
