All mix settings in the SQ+ can be stored and recalled in either ‘Scenes’ or ‘Show’ files.
Scenes are intended for recall during use, whilst a Show file contains everything for an event or particular set up. Show files can also be used to make a backup of a configuration or transfer it to another unit.
- A ‘Scene’ is a snapshot of all mix settings.
- There are 300 scene slots available per ‘Show’.
- In addition to all of the scenes, a ‘Show’ includes all SQ+ settings (such as Chromatic Channel Metering and Integrated Surface Illumination settings).

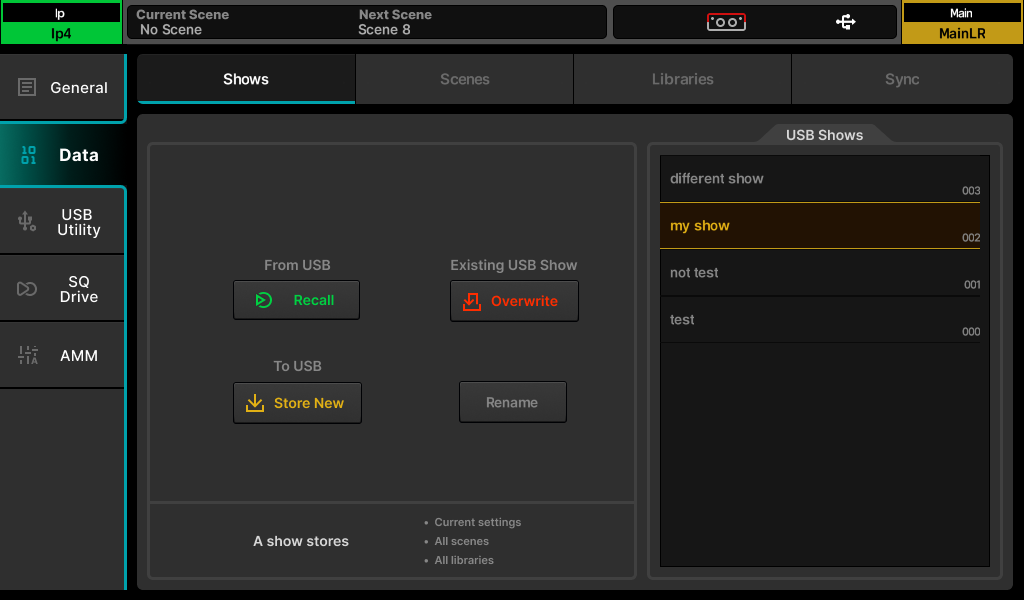

- The SQ+ can have one ‘Show’ on it at any one time. Multiple ‘Show’ files can be stored or recalled using SQ-Drive and SQ+MixPad.
- Up to 100 'Shows' can be stored on each external storage device.
| Stored in each Scene |
|---|
| Input and output routing |
| Input/Mix Stereo settings |
| Preamp settings |
| Channel processing |
| Channel assignments and send levels |
| Panning and balance |
| Channel mutes |
| Mute Groups and DCA assignments and levels |
| Fader/Channel strip assignments |
| Channel names and colours |
| Ganging |
| Scene filter settings |
| FX units and parameters |
| SoftKey/SoftRotary assignments |
| Footswitch settings |
| Stored in each Show |
|---|
| 300 Scenes |
| Cue List |
| Scene Manager list mode |

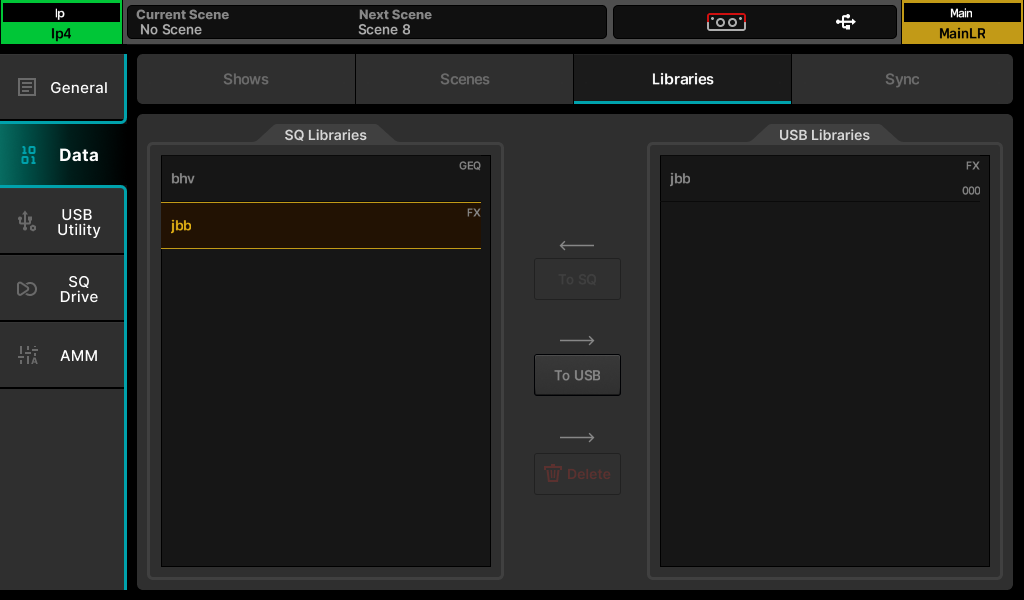

| All Libraries |
| Bus Config |
| Audio Clock source |
| AES/USB sample rate |
| Control Network Bridge state |
| PAFL and Listen settings |
| Talkback settings |
| Signal Generator settings |
| Mix Fader Mode |
| Global scene filter settings |

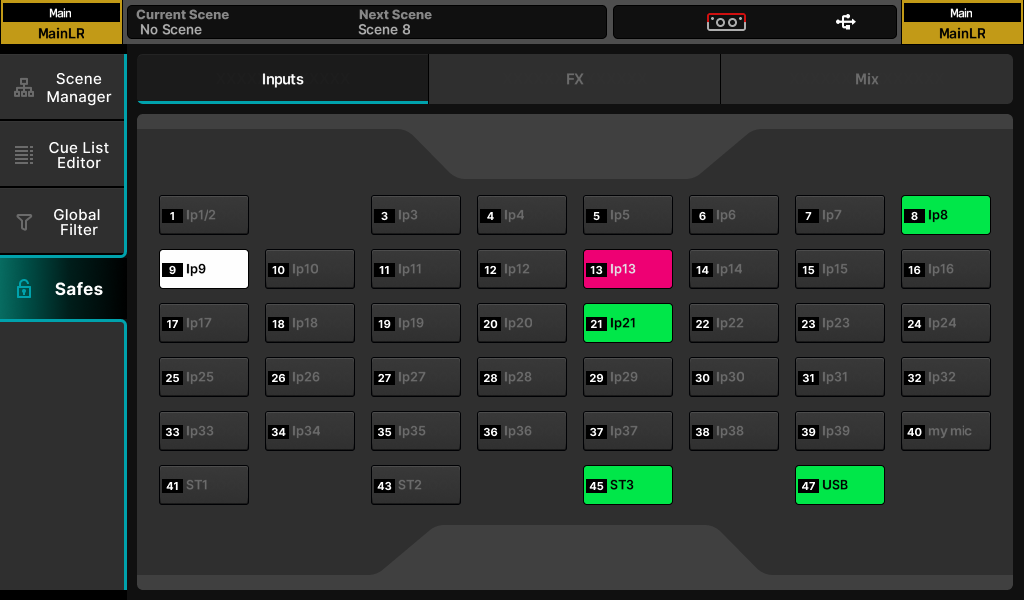

| Channel safes |
| Meter Source Points |
| Chromatic Channel Metering |
| Surface preferences |
| MIDI channel |
| Stored only in the SQ+ |
|---|
| Network settings |
| Unit name |
| Fader Calibration |
| User Permissions |
Scene Manager

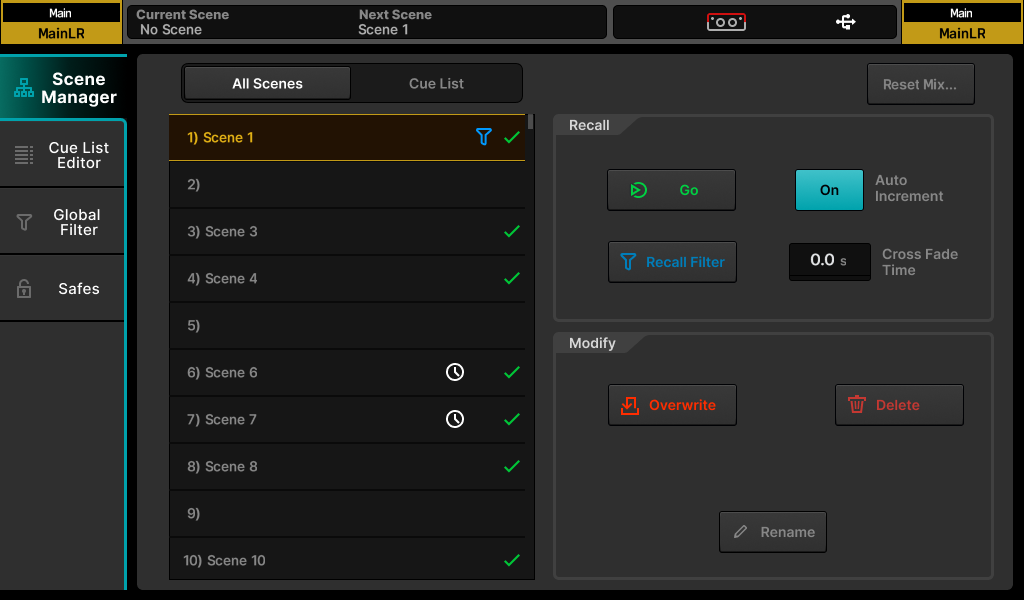

The Scene Manager allows the current state of the mixer to be stored as a Scene, Scenes can also be recalled, overwritten, deleted or have per-scene recall filters and cross fades applied.
Scene Manager Mode -
Touch the ‘All Scenes’ / ‘Cue List’ button above the scene list to choose the Scene Manager ‘mode’. ‘All Scenes’ works directly with all 300 scene slots. The ‘Cue List’ is like a playlist of cues, each with an associated scene, to allow for easy inserting, reordering, repetition and renumbering.
ⓘ The Scene Manager mode is global and also affects external recall of Scenes via the SQ+MixPad app.
All Scenes Mode -
All 300 scene slots are listed and numbered, touch and drag up and down or touch to select then use the touchscreen rotary to scroll through all slots.
To store the current state of the SQ+ to a new slot:
- Touch any empty slot.
- Touch the ‘Store’ button to save with the name ‘Scene [slot number]’.
To recall a scene and replace the current state of the SQ+ with the stored state:
- Touch a scene to highlight it then touch the ‘Go’ button.
To rename a scene:
- Touch the scene, then touch the 'Rename' button at the bottom right.
To overwrite a scene with the current state of the SQ+:
- Touch the scene to overwrite, then touch the ‘Overwrite’ button.
To delete a scene:
- Touch the scene you wish to delete then touch the ‘Delete’ button.
ⓘ You can choose whether or not to confirm scene operations (and avoid accidental overwriting) by using the ‘Confirm Scene Operations’ button found in Surface Preferences.
To quickly copy, paste or delete scenes in All Scenes:
- Hold the ‘COPY’ key and touch the scene you wish to copy.
- Hold the ‘PASTE’ key and touch the scene slot in which you’d like to paste it.
- Hold the ‘RESET’ key and touch a scene to delete it.
Cue List Mode –

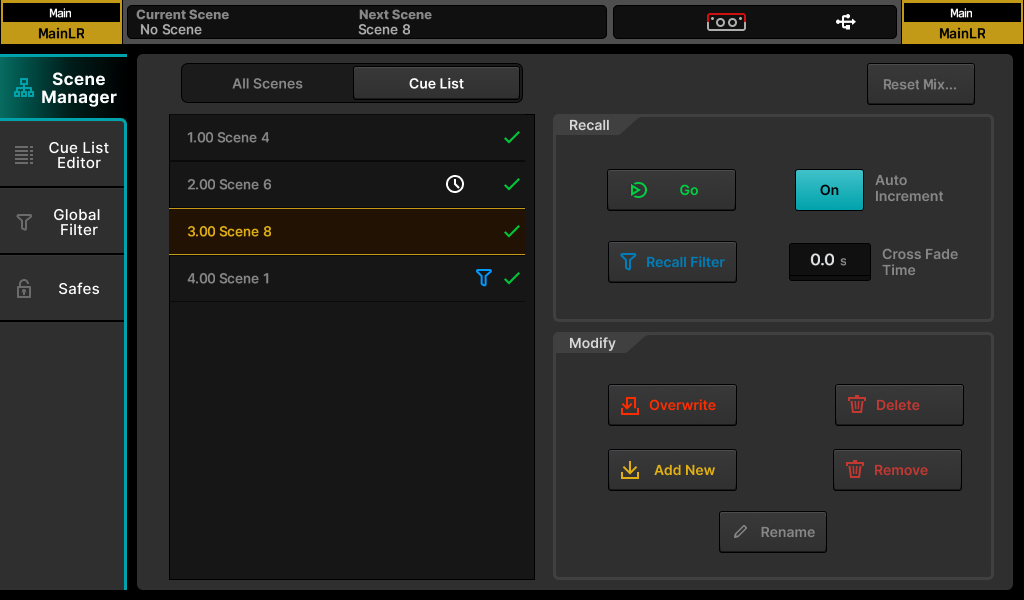

Each Cue in the list has an associated scene from one of the (up to 300) scenes in the current show. Cue numbers are displayed instead of the scene slot number.
To store the current state of the SQ+ into the next empty scene slot and add/insert a new cue for that scene after the currently selected cue:
- Touch the ‘Add New’ button to save with the name ‘Scene [slot number]’.
To recall a cue/scene and replace the current state with the stored state:
- Touch a cue/scene to highlight it then touch the ‘Go’ button.
To rename a scene (note that this renames the scene, not the cue):
- Touch the cue/scene, then touch the 'Rename' button.
To remove a cue from the Cue List without deleting the associated scene:
- Touch the ‘Remove’ button.
To overwrite a scene with the current state of the SQ+:
- Touch the cue/scene to overwrite, then touch the ‘Overwrite’ button.
To delete a scene completely (from the Cue List and the SQ+):
- Touch the scene you wish to delete then touch the ‘Delete’ button.
ⓘ You can choose whether or not to confirm scene operations (and avoid accidental overwriting) by using the ‘Confirm Scene Operations’ button found in Surface Preferences.
Scene Cross Fades –
A Cross Fade Time can be applied to each scene individually and is stored within that scene.
This smoothly transitions send levels and panning/balance between their previous state and their state in the scene (with the cross fade applied) which is being recalled.
- Select the scene to apply the cross fade to, then select the ‘Cross Fade Time’ value and use the touchscreen rotary to adjust.
Cross Fade Time = 0 to 20 seconds
Note that the cross fade applies to audio processing only. Actual fader positions and on-screen values will immediately display where they will be at the end of the cross fade time at the point of recall.
Auto Increment –
With Auto Increment turned on, recalling a scene using the ‘Go’ button on the Scene Manager screen will automatically select the next used scene slot in the All Scenes list or the next scene in the Cue List. Meaning the ‘Go’ button can be pressed repeatedly to move through the scenes sequentially.
ⓘ The Auto Increment setting on this screen does not affect the ‘Scene Recall Go’ SoftKey option, which has a separate Auto Increment option available.
Scene Filters –
When storing a scene, all mix settings are saved. However, it is possible to filter what is recalled using a combination of Scene recall filters and Global filters.
ⓘ See Global Filters for information on what each filter allows or blocks.
To choose which filters are allowed or blocked per scene:

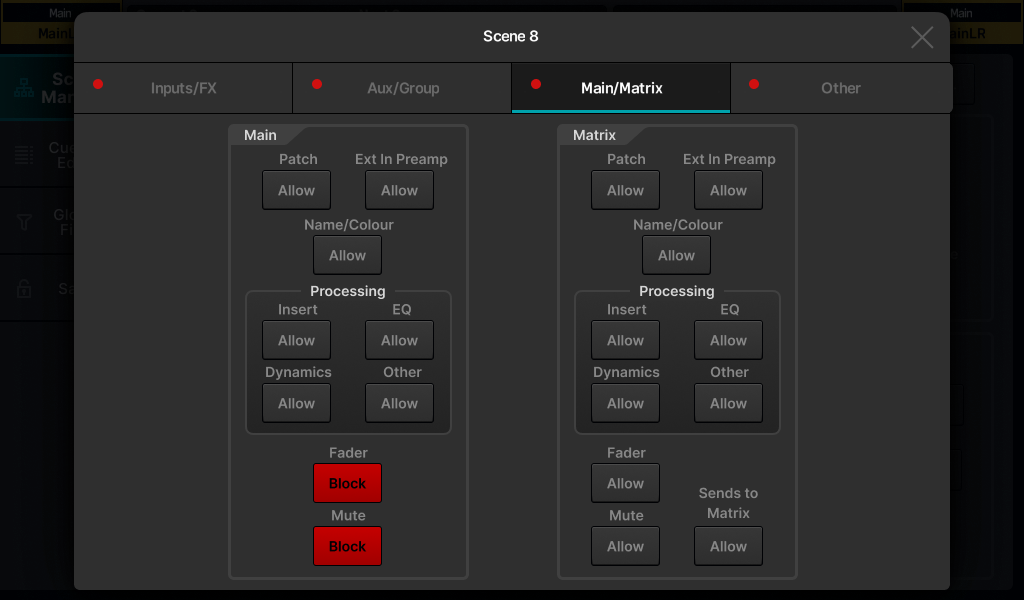

- Touch a scene or cue to highlight it then touch the ‘Recall Filter’ button.
- In the pop-up, there are four tabs ‘Input/FX’, 'Aux/Group', 'Main/Matrix' and ‘Other’ containing all available filters.
- Touch any filter button to switch between ‘Allow’ and ‘Block’.
- Blocked parameters will not be affected when recalling the scene.
ⓘ Global Recall Filters take precedence over Scene Recall Filters.
Reset Mix Settings –
If wanting to start with default mix settings, it is possible to reset the current state of the SQ+ to a default state without deleting any stored scenes.
ⓘ This will clear the current state of the SQ+, so it is best practice to store a scene before use.
- Touch the 'Reset Mix...' button at the top right
- Choose from the 'Standard' or 'Monitor' reset options
- Touch the 'Reset' button
Cue List Editor

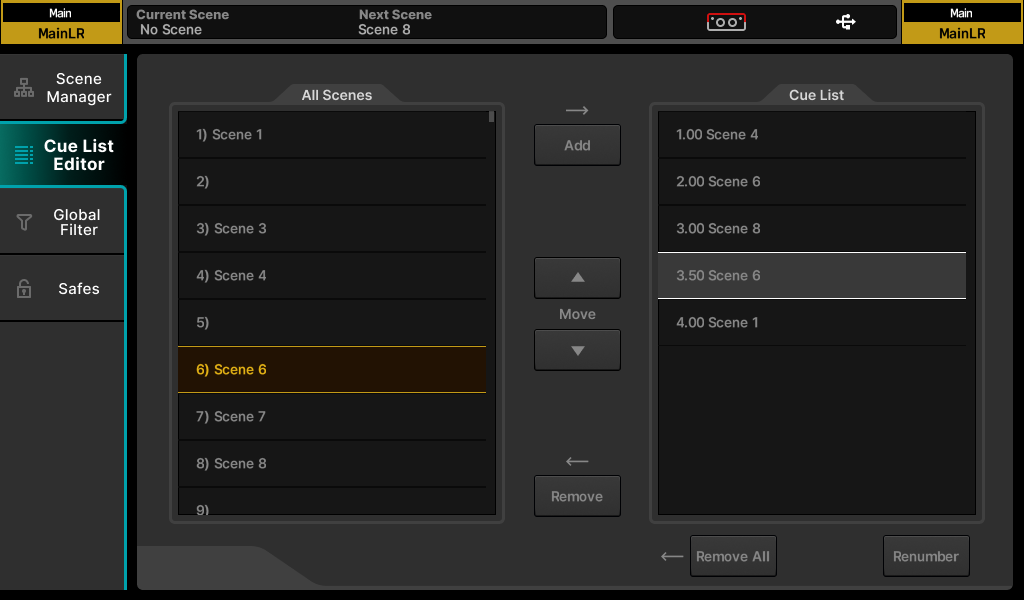

The Cue List Editor allows cues to be added, inserted and removed from the Cue List in the same way as is possible in Cue List mode in the Scene Manager screen. Additionally, it’s possible to clear the Cue List completely as well as reorder and renumber it.
To add/insert a new cue for a scene into the Cue List:
- Touch a stored scene in the All Scenes list on the left.
- Touch a cue in the Cue List on the right.
- Touch ‘Add’ to add a cue for the selected scene after the selected cue.
ⓘ When inserting a new cue, it will be automatically numbered based on its position in the Cue List.
To remove scenes from the Cue List (this will not delete scenes from the SQ+, only remove the cue for it from the Cue List):
- Touch the cue to be removed.
- Touch the ‘Remove’ button to remove it.
OR
- Touch the ‘Remove All’ button to completely clear the Cue List.
Cue List numbering and renumbering –
The Cue List is numbered to two decimal places, allowing scenes inserted between two existing scenes in the Cue List to be automatically assigned a number between the two without changing the existing numbering.
This is for systems and setups using external triggering via MIDI Show Control to prevent those triggers from needing to be changed if extra scenes are inserted.
It is possible to renumber the Cue List scenes at any time however, by touching the ‘Renumber’ button to show the Renumbering popup.

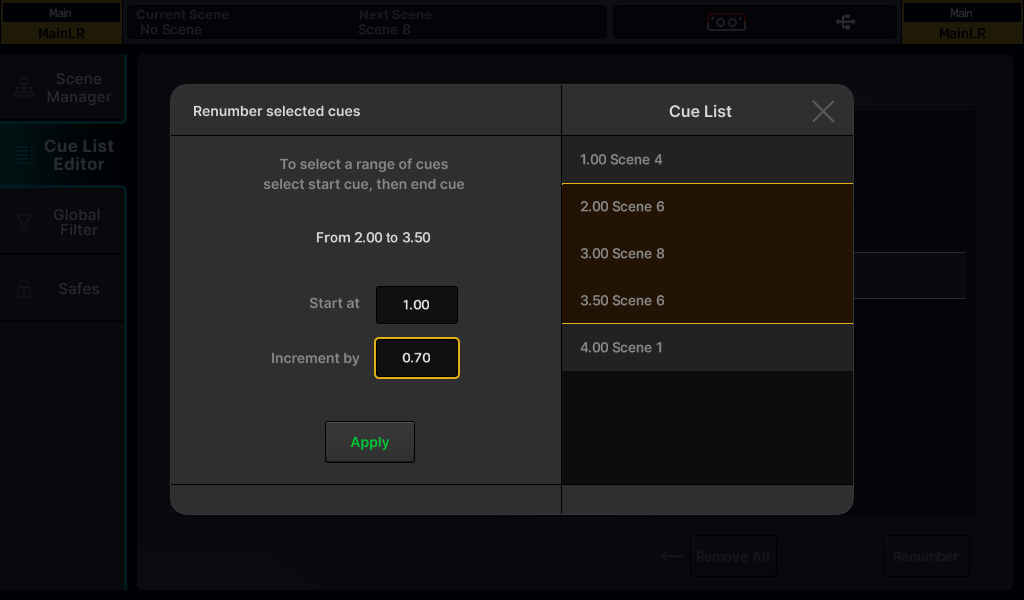

To renumber a range of cues in the Cue List:
- Touch the first cue in the range you wish to renumber.
- Touch the last cue in the range you wish to renumber.
- Touch the ‘Start at’ value and use the touchscreen rotary to select the number for the first cue in the range.
- Touch the ‘Increment by’ value and use the touchscreen rotary to select how much the number for each consecutive cue will be incremented by.
- Touch the ‘Apply’ button.
ⓘ Setting ‘impossible’ values that clash with or overlap existing cues will cause the ‘Apply’ button to be greyed out.
ⓘ Setting a ‘Start at’ value higher than the final cue is possible, but will move the range of cues to the end of the Cue List to ensure all cues remain in numerical order.
ⓘ Setting values which allow the entire range to fit between two existing cues is possible and will move the range to that position to ensure all cues remain in numerical order.

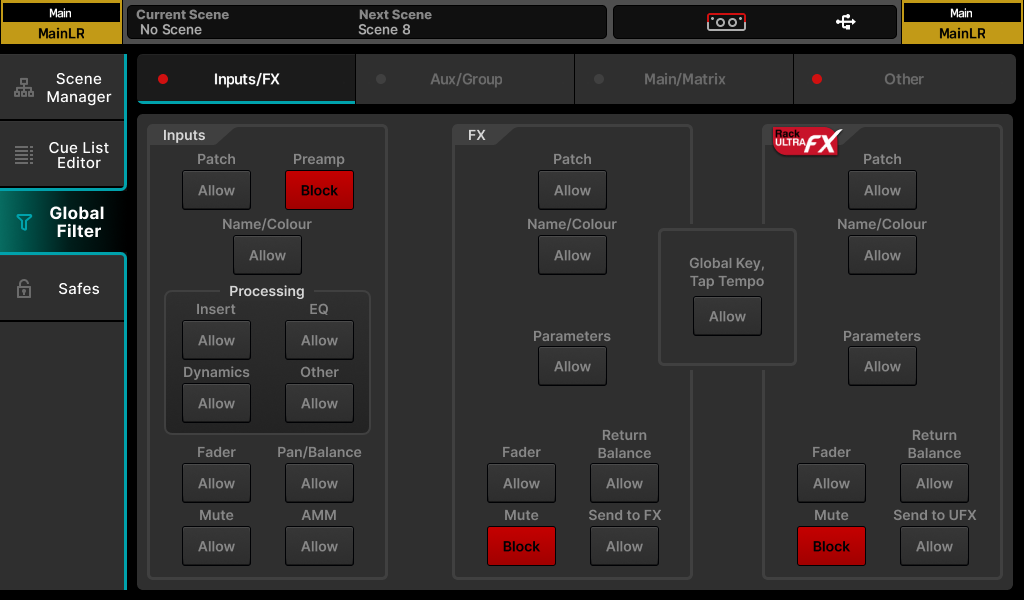

Global Filters
Global filters are always active, and affect which settings are changed when recalling a scene. They also override any scene filters.
- Touch any filter button to switch between ‘Allow’ and ‘Block’.
- Blocked parameters will not be affected when recalling scenes.
ⓘ It is common to block ‘SoftKeys’, ’SoftRotaries’ and ‘Foot Switch’, so they continue to function in the same way whenever scenes are recalled.
ⓘ Changes to Talkback and PAFL Ext In patching and preamp parameters are always blocked as these are show level parameters.
ⓘ All output socket filters also affect socket settings e.g. AES sample rate setting.
Input/FX Filters –
| Inputs | |
|---|---|
| Filter | Includes |
| Patch | Source and Direct Out patching of input channels |
| Preamp | Preamp settings of input channels (excludes DEEP preamp models) |
| Name/Colour | All input channel names and colours |
| Processing/Insert | All Input channel insert patching and settings |
| Processing/EQ | All Input channel HPF and PEQ settings |
| Processing/Dynamics | All Input channel Gate and Compressor settings |
| Processing/Other | All Input channel Trim, DEEP preamp, Stereo Image and channel Delay settings |
| Fader | All input channel fader positions and assignments to the Main LR mix |
| Pan/Balance | All input channel panning and balance to Main LR mix |
| Mute | All input channel mutes |
| AMM | All AMM assignments and settings |
| FX / RackUltra FX | |
|---|---|
| Filter | Includes |
| Patch | FX or RackUltra FX input patching (Mix->Return or Insert) and output patching |
| Name/Colour | FX or RackUltra FX Send and Return channel names and colours |
| Parameters | FX or RackUltra FX parameters and wet/dry mix settings |
| Fader | FX or RackUltra FX Send and Return channel fader positions |
| Return Balance | FX or RackUltra FX Return channel balance positions |
| Mute | FX or RackUltra FX Send and Return channel mutes |
| Sends to FX | FX or RackUltra FX send levels and assignments to FX busses |
| Global Key, Tap Tempo | FX and RackUltra FX Global Tap Tempo and RackUltra FX Global Key |
Mix Filters –
| Aux | |
|---|---|
| Filter | Includes |
| Patch | Mix Ext In source plus output patching of Aux channels |
| Ext In Preamp | Preamp settings of Aux Mix Ext In |
| Name/Colour | All Aux channel names and colours |
| Processing/Insert | All Aux channel insert patching and settings |
| Processing/EQ | All Aux channel GEQ and PEQ settings |
| Processing/Dynamics | All Aux channel Compressor settings |
| Processing/Other | All Aux channel Delay settings |
| Fader | Master fader positions and output balance of Aux channels |
| Mute | Master mute for all Aux channels |
| Sends to Aux | All send levels to Aux channels |
| Group | |
|---|---|
| Filter | Includes |
| Patch | Mix Ext In source plus output patching of Group channels |
| Ext In Preamp | Preamp settings of Group Mix Ext In |
| Name/Colour | All Group channel names and colours |
| Processing/Insert | All Group channel insert patching and settings |
| Processing/EQ | All Group channel GEQ and PEQ settings |
| Processing/Dynamics | All Group channel Compressor settings |
| Processing/Other | All Group channel Delay settings |
| Fader | Master fader positions and output balance of Group channels |
| Pan/Balance | Master pan and balance positions for all Group channels |
| Mute | Master mute for all Group channels |
| Assigns to Group | All channel assignments to all groups |
| Main | |
|---|---|
| Filter | Includes |
| Patch | Mix Ext In source plus output patching of the Main LR channel |
| Ext In Preamp | Preamp settings of Main LR Mix Ext In |
| Name/Colour | Main LR channel name and colour |
| Processing/Insert | Main LR channel insert patching and settings |
| Processing/EQ | Main LR channel GEQ and PEQ settings |
| Processing/Dynamics | Main LR channel Compressor settings |
| Processing/Other | Main LR channel Delay settings |
| Fader | Master fader positions and output balance of the Main LR channel |
| Mute | Master mute for all Main LR channel |
| Matrix | |
|---|---|
| Filter | Includes |
| Patch | Mix Ext In source plus output patching of Matrix channels |
| Ext In Preamp | Preamp settings of Matrix Mix Ext In |
| Name/Colour | All Matrix channel names and colours |
| Processing/Insert | All Matrix channel insert patching and settings |
| Processing/EQ | All Matrix channel GEQ and PEQ settings |
| Processing/Dynamics | All Matrix channel Compressor settings |
| Processing/Other | All Matrix channel Delay settings |
| Fader | Master fader positions and output balance of Matrix channels |
| Mute | Master mute for all Matrix channels |
| Sends to Matrix | All send levels to Matrix channels |
Other Filters –
| DCA/Mute Group | |
|---|---|
| Filter | Includes |
| DCA Name/Colour | All DCA names and colours |
| Mute Group Name | All Mute Groups names |
| DCA Fader | All DCA fader values |
| DCA Mute | All DCA mutes |
| Mute Group Mute | All Mute Group mutes |
| DCA Assign | All DCA member assignments |
| Mute Group Assign | All Mute Group assignments |
| Input Sockets | |
|---|---|
| Filter | Includes |
| Tie Line Only Preamps | Preamp parameters for connected sockets not assigned to a channel |
| Output Sockets | |
|---|---|
| Filter | Includes |
| Local Patch | All patching to local output sockets (XLR, TRS and AES) |
| SLink Patch | All patching to the SLink port |
| USB Patch | All patching to USB (SQ-Drive and USB-B) |
| ME Patch | All patching to the ME system (SLink or I/O Port) |
| I/O Port Patch | All patching to the I/O Port |
| Control | |
|---|---|
| Filter | Includes |
| SoftKeys | All SoftKey assignments |
| Strip Assign | Channel strip layout |
| Soft Rotaries | All Soft Rotary assignments |
| Footswitches | Footswitch assignments |
| Ganging | All ganging assignments and linked parameters |
| Mixer Config | |
|---|---|
| Filter | Includes |
| Input Stereo | Mono/stereo state of odd/even Input channel pairs |
| Mix Stereo | Mono/stereo state of Group, Aux and Matrix channels |
Safes
‘Safes’ block any changes to a channel when recalling a scene.
- Touch ‘Input’, ‘FX’ or ‘Mix’ tabs to view all channel safes.
- Touch a ‘Safe’ button to safe the channel (the button will show the channel colour)
Libraries
Factory Libraries and User Libraries are available for many features and processing in SQ+and can be accessed by using the dedicated Library key when in certain screens.
ⓘ The 'LIBRARY' key will illuminate whenever a library is available for the screen being viewed.
Factory libraries provide presets and are also used to recall different FX units or DEEP plug-ins. They are fixed in firmware and cannot be edited or overwritten.
To recall from the library:
- Go to the screen you wish to recall parameters for.
- Press the ‘LIBRARY’ key.
- Select the Factory or User library item you wish to recall.
- Touch the ’Recall’ button.

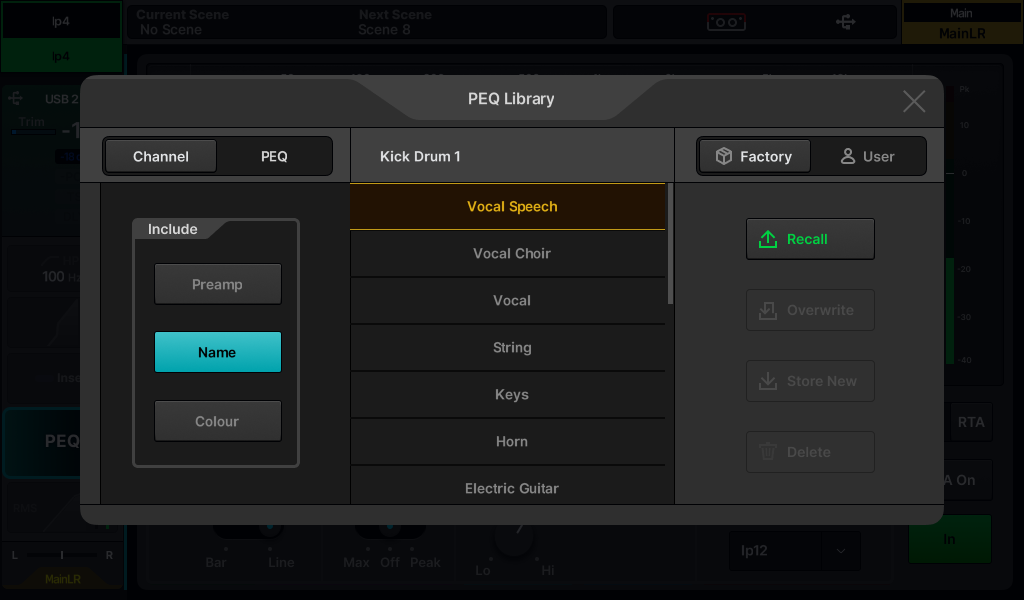

To store or overwrite a library item:
- Go to the screen you wish to store parameters for with the settings you wish to store visible.
- Press the ‘LIBRARY’ key.
- Select the User library in the top right of the screen.
- Touch the ’Store New’ button to store a new library item.
OR
- Select a library item and touch the ‘Overwrite’ button.
To delete a library item:
- Select the User library in the top right of the screen.
- Select the library item you wish to delete.
- Touch the ’Delete’ button then confirm to delete the item.
Libraries are available in the following screens.
| Library | Screen | Includes |
|---|---|---|
| Input Channel | Processing overview (input selected) | All input channel processing - Options for Preamp, Name and Colour recall |
| Mix Channel | Processing overview (mix selected) | All mix channel processing - Options for Ext In Preamp, Name and Colour recall |
| Preamp Model | Processing > Preamp (input selected) | DEEP preamp model and parameters |
| Gate | Processing > Gate | Gate/Ducker/Expander parameters |
| GEQ | Processing > GEQ | GEQ models and parameters |
| PEQ | Processing > PEQ | PEQ parameters - Option for HPF |
| Compressor | Processing > Compressor | Compressor/Ducker models and parameters |
| FX | FX (slot selected) | Standard FX units and parameters, includes Wet/Dry mix |
| FX/RackUltra FX | FX (RackUltra FX slot selected) | Standard or RackUltra FX units and parameters, includes Wet/Dry mix |
| User Permissions | Setup > Users (User 1- 10 selected) | User permission settings |
| Input Channel Patch | I/O > Inputs > Input Channel | All patching for Input Channels |
Data Transfer
All data transfer options are located in the ‘UTILITY’ screen, in the ‘Data’ tab. These enable shows and individual scenes and libraries to be stored and recalled, and are used to back-up data or transfer it to another SQ+.
USB Shows –
To store a show to a USB device:
- Touch the ‘Store New’ button - you will be prompted to name the show.
To recall a show:
- Touch a show to highlight it (use the touchscreen rotary to change selection or scroll through all shows) then touch the ‘Recall’ button.
To rename a scene:
- Touch a show, then touch the 'Rename' button.
To overwrite a scene:
- Touch the scene to overwrite, then touch the ‘Overwrite’ button.
ⓘ Storing or recalling shows is not possible when SQ-Drive is being used for recording or playback.
ⓘ Storing or recalling shows will interrupt USB-B audio streaming.
USB Scenes –

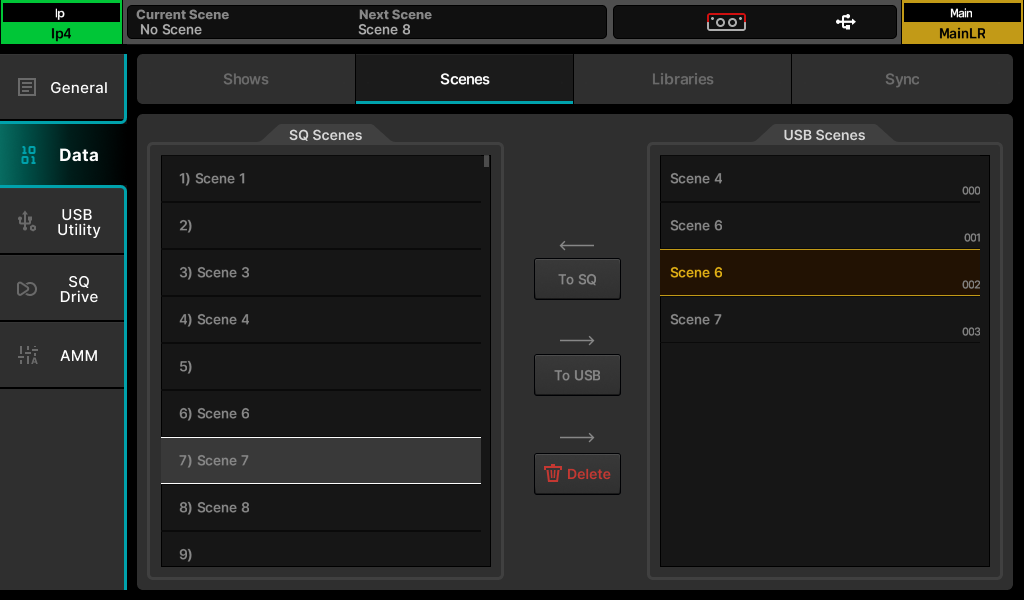

To store an individual scene to a USB device:
- Touch to select the scene you wish to store in the ‘SQ Scenes’ list on the left.
- Touch the ‘To USB’ button.
To transfer a scene from USB to the SQ:
- Touch to select the scene to transfer in the ‘USB Scenes’ list on the right.
- Touch to select an empty slot in the ‘SQ Scenes’ list on the left.
- Touch the ‘To SQ’ button to transfer.
To overwrite a scene:
- Touch to select the scene to transfer in the ‘USB Scenes’ list on the right.
- Touch to select the scene to overwrite in the ‘SQ Scenes’ list on the left.
- Touch the ‘To SQ’ button to transfer and agree in the pop-up to overwrite the SQ+ scene.
To delete a scene from USB:
- Touch to select the scene to delete in the ‘USB Scenes’ list on the right.
- Touch the ‘Delete’ button and confirm the action in the pop-up.
USB Libraries –
To store an individual library item to a USB device:
- Touch to select the library item you wish to store in the ‘SQ Libraries’ list on the left.
ⓘ All user libraries in the current show are displayed.
- Touch the ‘To USB’ button.
To transfer a library item from USB to the SQ+:
- Touch to select the library to transfer in the ‘USB Libraries’ list on the right.
- Touch the ‘To SQ’ button to transfer.
To overwrite a library item:
- Touch to select the library item to transfer in the ‘USB Libraries’ list on the right.
- Touch to select the library item to overwrite in the ‘SQ Libraries’ list on the left.
- Touch the ‘To SQ’ button and agree to the pop-up to transfer and overwrite the SQ+library item.
To delete a library item from USB:
- Touch to select the library item to delete in the ‘USB Libraries’ list on the right.
Touch the ‘Delete’ button and confirm the action in the pop-up.
Sync –
To push or pull data using the SQ+MixPad app, the SQ+console must be in sync mode. This avoids accidental overwriting of the current data on either the SQ+console or SQ+MixPad.

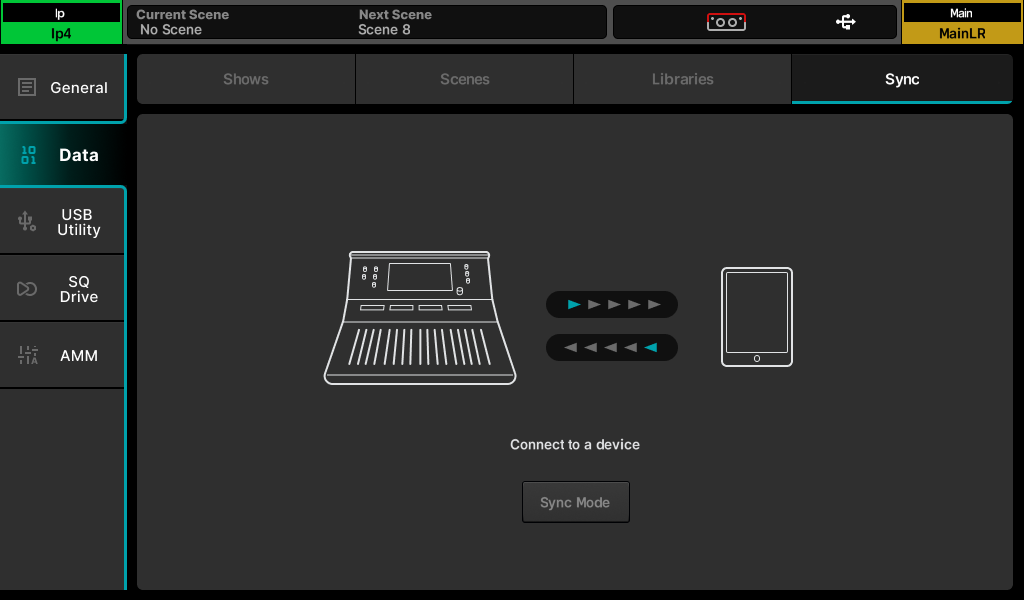

To enter sync mode, go to the ‘UTILITY’ screen, then touch ‘Data’ followed by ‘Sync’.
Touch the ‘Sync Mode’ button then confirm you understand the implications of sync mode in the pop-up to proceed.
Once in sync mode, pushing and pulling of data is controlled by SQ+MixPad.
ⓘ User permissions for the current user of both the console and SQ+MixPad must allow ‘Sync Push’ and/or ‘Sync Pull’ to transfer a show.
ⓘ Refer to SQ+MixPad help for more information on data transfer to and from MixPad.
ⓘ Starting sync mode will disconnect all devices aside from the one being connected to as all network bandwidth is required without interruption.
