Qu. Outboard Gear

The Qu range of Allen & Heath mixers do not have dedicated send and returns for external hardware.

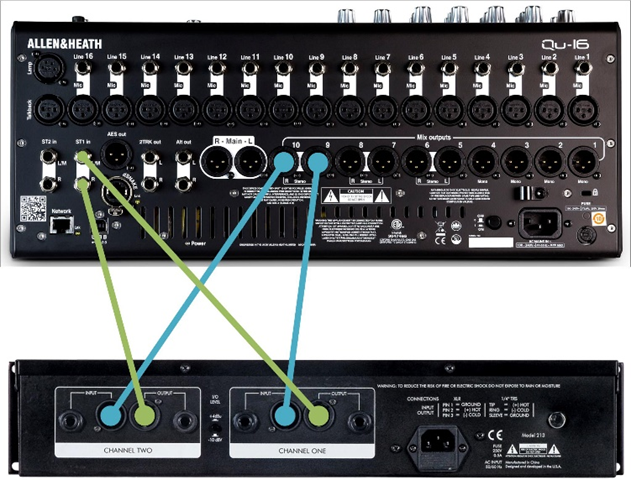

As a workaround you can do the following:

1. Send audio from your DAW to Qu's input channel/s.
2. Send audio from the input channel above to a Mix Output (Mix 1, 2, 3, 4, 5-6 etc).
3. Connect the Mix Output to the input/s of your outboard gear.
4. Connect the return from your processor to a new input channel/s on Qu.
