By default, the Xone 43C will route the 8 USB upstream channels (from the mixer) directly off the mixer's 4 stereo RCA input connectors. This is for out-the-box DVS implementation.

However, each of the 4 stereo pairs can be reconfigured with internal jumper settings. This is so the mixer can either stream the master record and/or FX buses via USB.

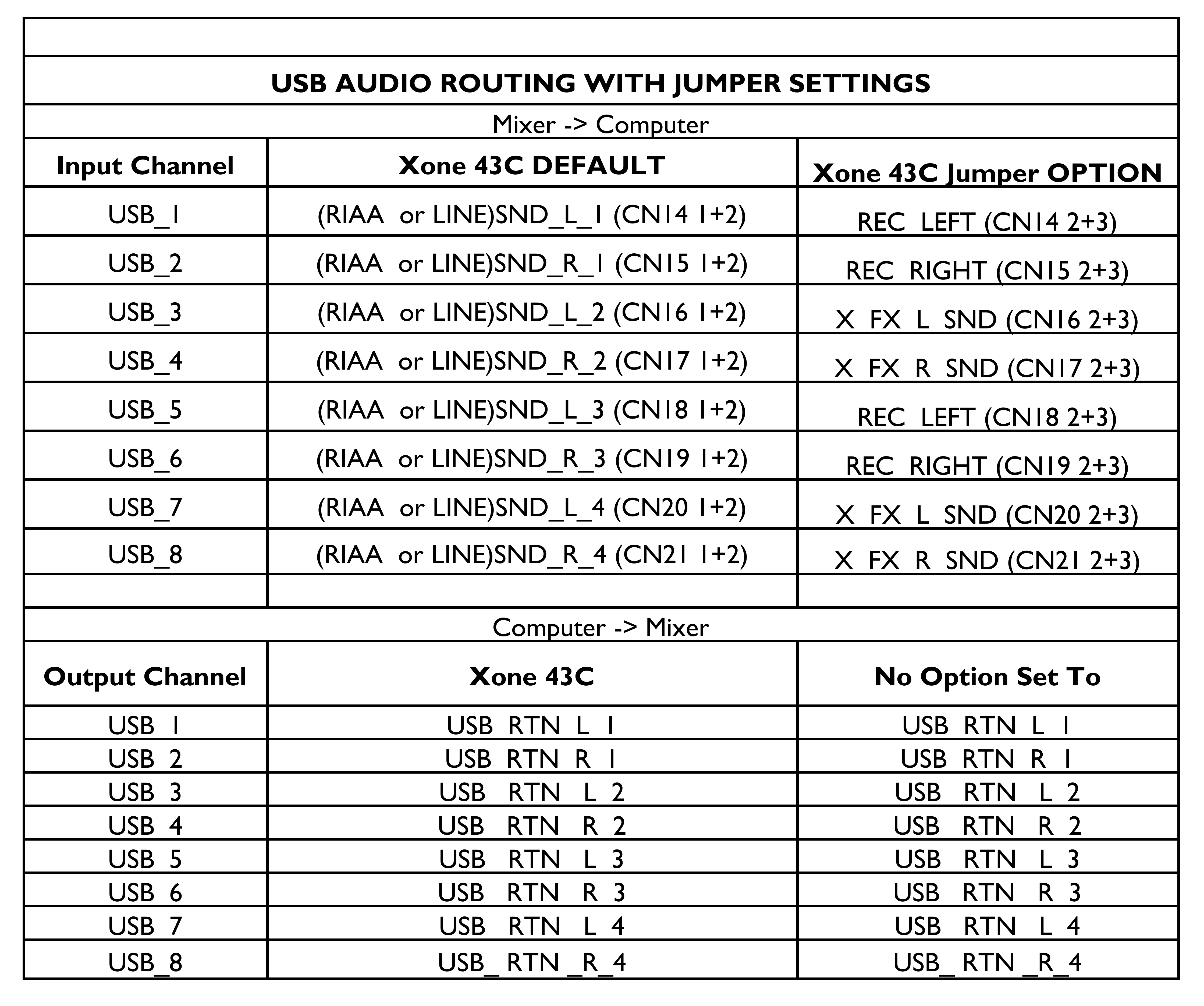

Please see the table below for the default and configurable options.

The mixer must be accessed to configure the jumpers. Details for this can be found in the user guide.

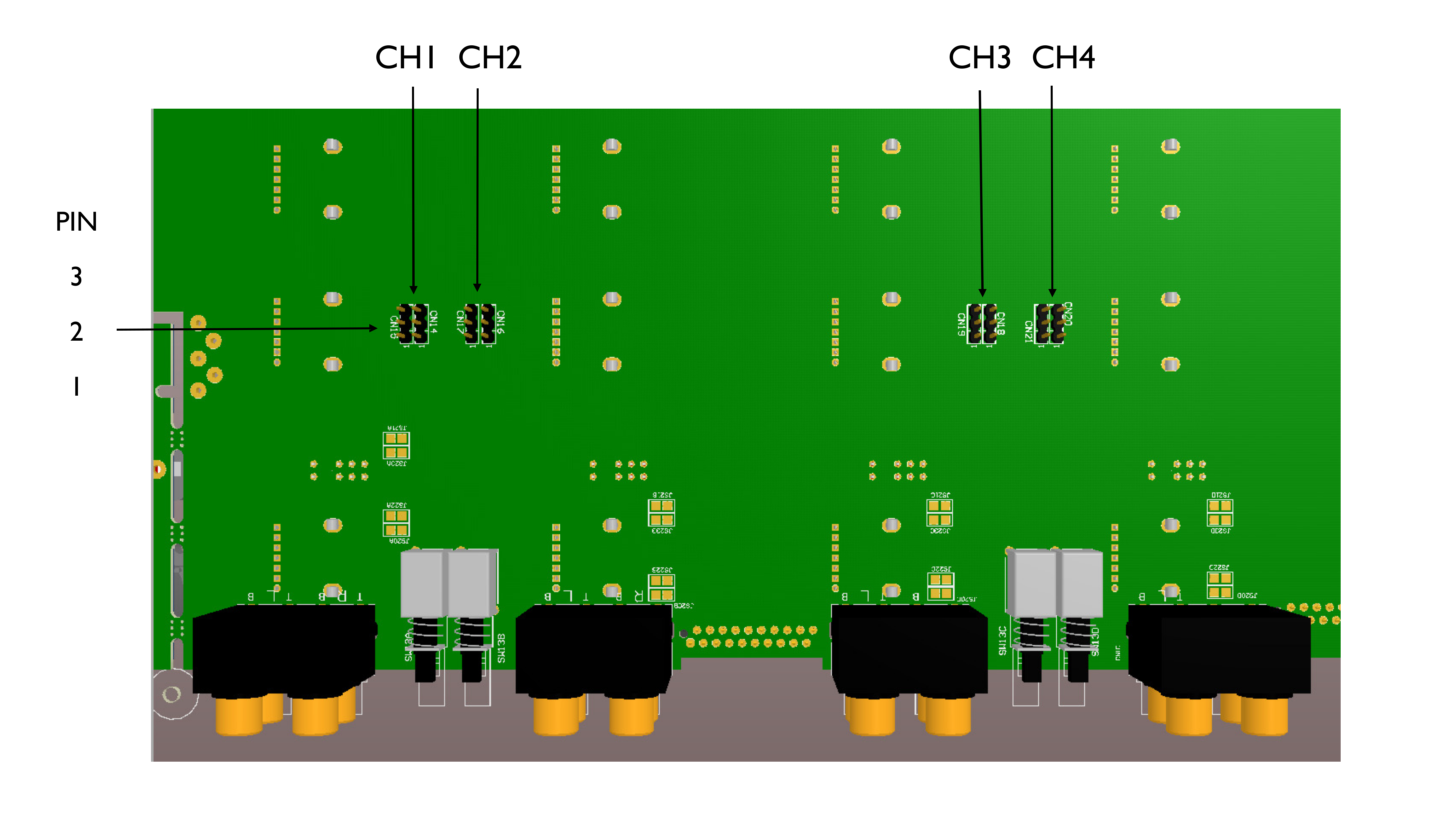

Once the mixer has been accessed, check on the underside of the surface PCB, just below the RCA connectors. See below for reference.

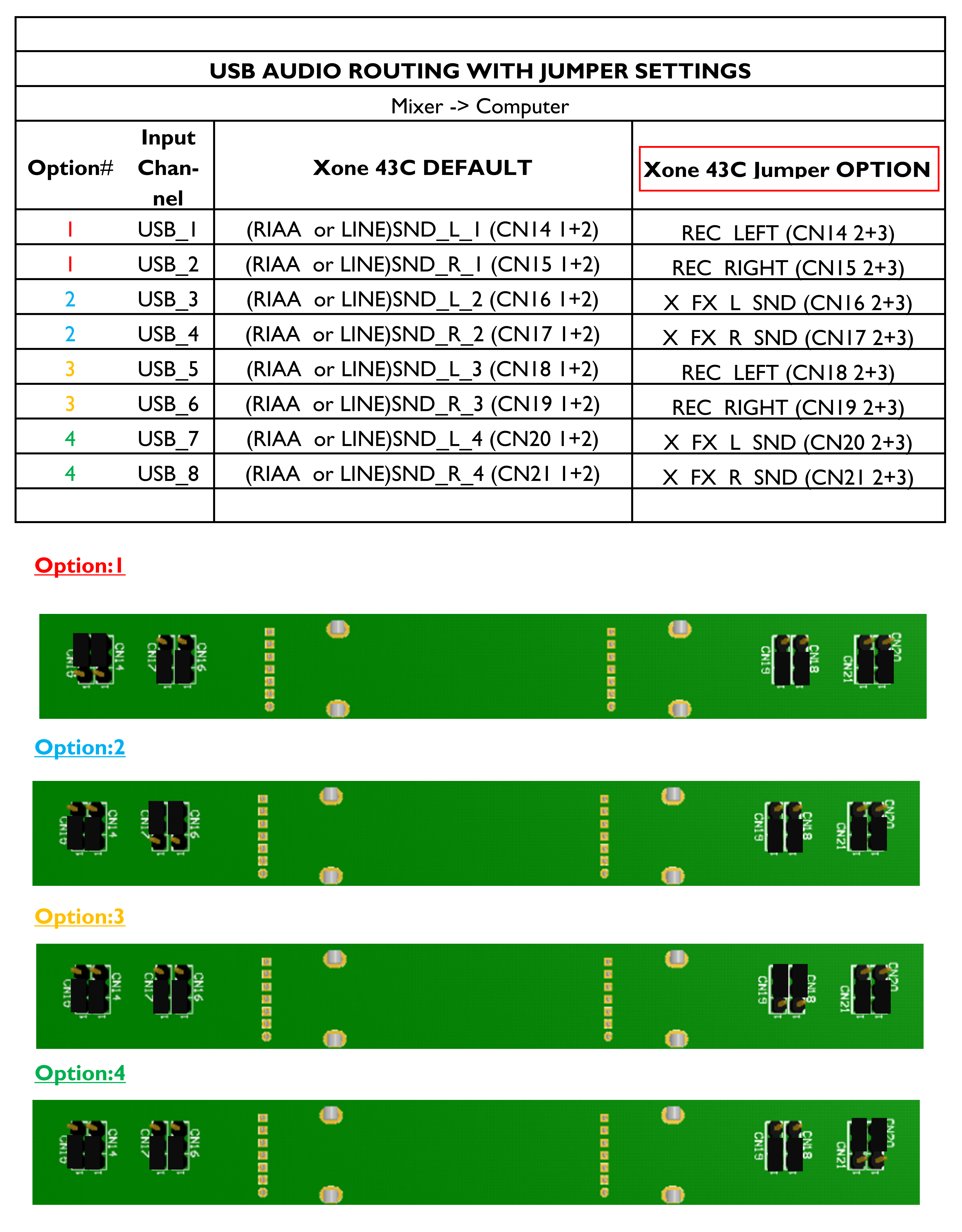

Once the jumper positions have been located, please use the table & guide below to select the desired option.

Please note; Allen & Heath Ltd will not be held responsible for any harm caused to your person or product when attempting to carry out service repairs and/or modifications yourself.  If in doubt, please contact our distribution partner in your country. Contact details can be found on our where to buy page; https://www.allen-heath.com/where-to-buy/
