IMPORTANT - Read before starting

Safety instructions

Before starting, read the Important Safety Instructions printed on the sheet supplied with the equipment. For your own safety and that of the operator, technical crew and performers, follow all instructions and heed all warnings printed on the sheet and on the equipment panels.

System operating firmware

The function of this product is determined by the firmware (operating software) that runs it. Firmware is updated regularly as new features are added and improvements made.

ⓘ Check www.allen-heath.com for the latest version of firmware for the product or the host system.

Software licence agreement

By using this Allen & Heath product and the software within it you agree to be bound by the terms of the relevant End User Licence Agreement (EULA), a copy of which can be found at www.allen-heath.com/legal. You agree to be bound by the terms of the EULA by installing, copying, or using the software.

Further information

Please refer to the Allen & Heath website for further information, knowledgebase and technical support. For more information on setup and mixing functions please refer to the Firmware Reference Guides available for download at www.allen-heath.com.

You can also join our Allen & Heath Digital Community to share knowledge and information with other users.

General precautions

• Protect the equipment from damage through liquid or dust contamination.
• If the equipment has been stored in sub-zero temperatures allow time for it to reach normal operating temperature before use at the venue. Recommended operating temperature is 0 to 40 degrees Celsius.

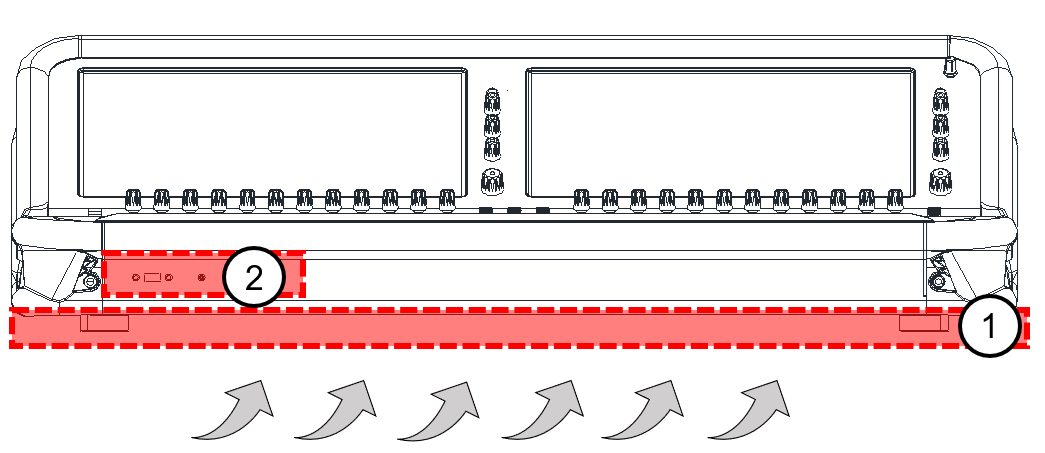

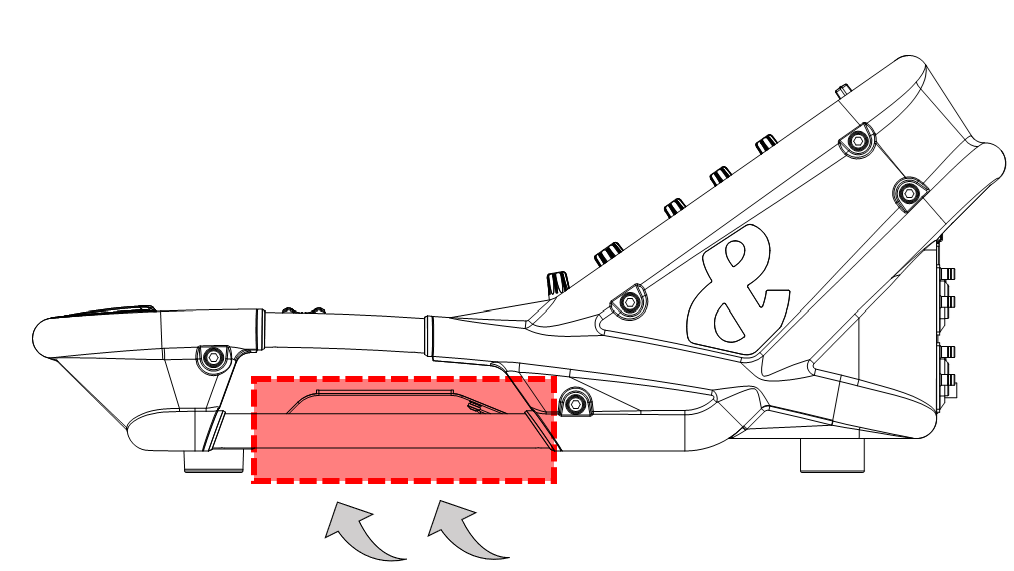

• Avoid using the equipment in extreme heat and direct sunlight. Make sure the ventilation slots and fans are not obstructed and that there is adequate air movement around the equipment.
• Clean the equipment with a soft brush and dry lint-free cloth. Do not use chemicals, abrasives or solvents. Do not use lubricant or contact cleaner on faders.
• It is recommended that servicing is carried out only by an authorised Allen & Heath agent. Contact details for your local distributor can be found on the Allen & Heath website. Allen & Heath do not accept liability for damage caused by maintenance, repair or modification by unauthorised personnel.

Register your product

Register your product online at www.allen-heath.com/register.

Warranty

A limited manufacturer's warranty applies to this product, the conditions of which can be found at www.allen-heath.com/legal.

Packed items

Check you have received the following:

• Avantis or Avantis Ultra Digital Mixing Console
• Safety Sheet
• IEC mains lead

Introduction

Avantis is a 96kHz digital mixing console providing a powerful solution for any live sound application. Pristine audio quality is delivered at ultra-low latency, and comprehensive signal routing and processing options are easily accessible via the dual 15.6” Full HD touchscreens.

Avantis is DEEP Processing ready, enabling the use of our world-class hardware emulations with no added latency or need for additional hardware. Visit allen-heath.com/avantis for more information.

The integrated SLink port offers Plug’n’Play operation with the GX, DX, AB and AR ranges of remote I/O expanders plus the DX Hub remote hub. Additionally, SLink can be used for digital split applications with a second Avantis mixer or a dLive/SQ system.

Compatibility with the ME Personal Monitoring System allows performers to take control of their own monitor mixes via the ME-1 and ME-500 personal mixers.

Digital audio networking cards are available to enable integration with other digital audio systems via protocols such as gigaACE, Dante, MADI and Waves SoundGrid.

Avantis features at a glance:

• XCVI FPGA core
• 96kHz sample rate, 96bit accumulator
• Ultra-low latency (0.7ms)
• 64 Input Channels with full processing (filter, gate, PEQ, compressor, inserts) (upgradeable to 96 with dPack activated)
• 42 configurable Mix outputs (upgradeable to 56 with dPack activated)
• DEEP Processing - embedded channel plugins
• 12 RackFX with dedicated returns
• 8 RackUltra FX with dedicated sends and returns (Ultra version only)
• 16 DCAs
• Twin 15.6” Full HD capacitive touchscreens
• Fully assignable layout
• 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• SLink port for connection to Remote I/O Expanders and the ME Personal Monitoring System
• 12 analogue XLR Inputs / 12 analogue XLR Outputs
• 1 Stereo AES In / 2 Stereo AES Out
• 2 I/O Ports, both capable of 128x128 operation at 96kHz
• Gesture control – pinch, swipe, drag ‘n drop
• User configurable rotary controls
• 24 assignable SoftKeys
• Comprehensive multipoint metering with peak detection
• USB stereo recording and playback
• BNC Word Clock

Refer to the Allen & Heath website to learn more about Avantis.

Connect and power up

Power Up

Ensure the rocker switch is in the off position. Plug in the IEC mains power lead supplied with the mixer. If required, secure the lead by hooking it into the plastic clip using a T20 Torx to remove the fixing screw. Power on the mixer using the rocker switch.

Calibrate Touch Faders

On first use, calibrate the fader touch sensitivity by going to Utility / Utility / Calibration and select Calibrate Fader Touch, select Left Bank and All and follow the onscreen instructions ensuring you only touch the first fader in the bank when instructed.

Once completed, repeat this process for the Right Bank, ensuring you only touch the first fader in the bank when instructed.

Recall a Template Show

Avantis has a fully configurable audio architecture, control layout, and socket patching. We have provided a set of Template Shows to give a choice of classic console formats to load as a quick starting point with a familiar architecture and logical layout.

To load a Template Show go to the Utility / Memory / Show Manager screen, select one of the available Template Shows, touch Recall and confirm.

ⓘ Recalling a Show overwrites all the system settings including the bus configuration, control layout, current parameters, all Scenes, and Library presets. If you want to save the current settings then first Store them as a User Show.

ⓘ For more information please refer to the Avantis Firmware Reference Guide available for download at www.allen-heath.com.

Expander Connection

Plug a touring grade CAT5e (or higher specification) cable up to 100m long between the Remote Expander and SLink port.

ⓘ Refer to the article about SLink Connections for cable requirements, recommendations, and a list of CAT5 cables available to order.

Switch on the Remote Expander. The SLink port Lnk/Err indicators flash at a steady rate when the link is established. The red error indicator lights if a communication error is detected. Check that the cables are the correct type, plugged in correctly, and are not faulty.

The following Remote Expanders are compatible with the Avantis SLink port:

ⓘ For more information on our range of I/O expanders please visit www.allen-heath.com/everything-io/

Power Down

The system must be powered down correctly. Navigate to Utility / Status / Homescreen and touch the Power Down button. Confirm the action and then turn the mixer and expanders off using their power switches.

ⓘ If the system is not powered down correctly there is a possibility recent changes may be lost.

ⓘ If the system was not powered down as described above, then a “Not Shut Down Correctly” screen appears the next time the system is turned on.

dPack Activation

Upgrade your console with Avantis dPack to access additional dLive processing including Dyn8 (up to 16 instances), DEEP Compressors and the Dual Stage Valve Preamp, plus more models as they’re added.

If you purchased the Ultra version of the Avantis Solo, you should already have dPack activated.  To verify, you can follow the instructions in the Firware Reference Guide section on Add-Ons.

If you purchased your Avantis with the dPack upgrade, you should have received a 12-character voucher code. To redeem your dPack voucher code and activate your upgrade:

1. Visit allen-heath.com/avantis and ensure you have downloaded and installed the latest firmware on your Avantis
2. Go to shop.allen-heath.com, select the Avantis dPack product and add it to your Shopping Cart.
3. Click on ‘Shopping Cart’ in the top right menu bar
4. Click on ‘Use Coupon Code’ and enter your code as supplied – then click ‘Apply Coupon’
5. Click ‘Checkout’ and complete the checkout process.
6. Once you’ve completed checkout, go to your Account Downloads page – My Account > Downloads
7. Follow the instructions on screen to generate your dPack upgrade key and enter it in to your console.

If you did not purchase your Avantis with the dPack upgrade, but wish to purchase dPack for your mixer, please visit shop.allen-heath.com

If you experience any difficulties, please contact Allen & Heath Shop Support by emailing shopsupport@allen-heath.com

Rear Panel

1. Mic/Line Inputs

   12x recallable preamps for balanced or unbalanced microphone and line level signals. Gain, Pad and 48V are digitally controlled within the preamp. The PP indicator lights up when phantom power voltage is detected at the socket, whether internally or externally sourced.

   Any socket can be patched to any Input Channel using the I/O or Processing / Preamp screen.

2. Digital Inputs

   Stereo AES3 input (32kHz – 192kHz sampling rate). Sample Rate Conversion can be bypassed.

   Any socket can be patched to any Input Channel using the I/O or Processing / Preamp screen.

3. USB 2.0 Socket

   Insert a compatible USB device to store and recall show files, update the firmware or to perform USB playback and recording.

4. Power Supply

   Mains IEC socket, fuse and On/Off rocker switch. A plastic P-clip cable clamp is provided to secure the mains cable. Slot the cable in, or lock it in place using a star Torx^© T20 screwdriver to refit the clamp around the cable.

   ⓘ Heed the safety warnings printed on the panel.

5. Kensington Lock

   A slot for fitting standard Kensington anti-theft security devices.

6. Digital Outputs

   Stereo AES3 outputs (44.1kHz, 48kHz or 96kHz switchable).

   Signals can be patched to any output socket using the I/O screen.

7. Status Indicators

   Power ON indicator. The Ready indicator illuminates when the output sockets are ready to pass audio after power up. The Audio Sync Locked indicator illuminates when a valid clock source is present.

8. Word Clock I/O

   BNC connector for syncing from an external audio clock or providing a clock to other devices. In and Out LEDs indicate the current mode.

9. Line Outputs

   12x line level, balanced XLR outputs. Nominal level +4dBu. The outputs are relay protected to prevent power on or off thumps. Signals can be patched to any output socket using the I/O screen.

10. SLink

    For connection to remote I/O expanders and/or the ME Personal Monitoring System. See the Expander Connection section of this document for more information on supported devices.

11. Network

    2 RJ45 Gigabit Ethernet ports. Connect a laptop or a wireless router to use with Avantis Editor or iOS apps. All devices on the network must have compatible IP addresses.

    The default settings are:

    DHCP Enabled:	Off
    IP Address:	192.168.1.80
    Subnet Mask:	255.255.255.0
    Gateway:	192.168.1.254

12. I/O Ports

    2 Audio interface ports, both capable of 128x128 channels. Fit one of the option cards available for system expansion, digital mic splitting, recording or distributed audio networking. Refer to www.allen-heath.com for a list of available option cards. Use the I/O screen to patch signals from or to the I/O Ports.

Front Panel

1. USB 3.0 Socket

   Insert a compatible USB device to store and recall show files, update the firmware or to perform USB playback and recording.

2. Headphone Sockets

   Standard 1/4 “ and 1/8” headphone jack sockets are located under the armrest.

Top Panel

1. Touchscreens

   15.6” capacitive touchscreens. See the Screens section for more information.

2. Screen Controls

   Control of user-assignable parameters. See the Screens section for more information.

3. Pre / Safes / Freeze

   Toggle channel status:

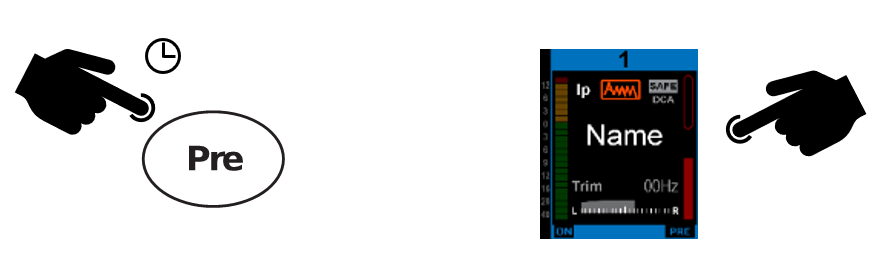

   • Pre/Post - Hold down Pre, and touch a channel Name Block to toggle the sends to the active Mix between pre or post fade. Toggle all channels pre/post by touching a master mix Name Block. Assignments and pre/post settings for the selected channel or Mix are also available in the Routing screen.
   • Safes - Hold down Safes and press a Name Block to make the channel safe from Scene recall. To make only a selection of parameters safe, use the Scenes / Global Safes screen.
   • Freeze in Layers - Hold down Freeze in Layers and press a Name Block to lock a channel in place across all layers.

4. SoftKeys

   24 user-assignable keys. Assign functions using the Setup / Control / SoftKeys screen.

5. Copy / Paste / Reset

   • Copy – Hold down Copy and press:
     • A channel Name Block to copy the entire channel processing.
     • Any highlighted area of the touchscreen to copy the settings of a single Processing Block.
     • A strip Mix key to copy the mix assignments and send levels.
   • Paste - Hold down Paste and press a Name Block, Mix key or a highlighted area of the touchscreen to paste copied settings.
   • Reset - Hold down Reset and press a Name Block, Mix key or a highlighted area of the touchscreen to reset the related parameters to factory default. Hold down Reset and nudge a fader up or down to quickly set it to 0dB or off.

6. Layers

   Navigate 6 layers of fader strips per bank. The red Pk (peak) indicators illuminate when any channel in the associated layer is within 3dB of clipping, so you can monitor signal activity across the layers. Banks can be linked using the Setup / Control / Surface Prefs screen – the Layer keys will affect both Banks when Link is active.

7. Fader Banks

   Two 12 channel fader banks provide control of Input channels, FX returns, Mix masters, DCAs, engineer’s Wedge / IEM monitor, or MIDI. Read the Fader Strip section below for further information. A dedicated master section (7a) can be enabled for persistent visibility of 4 channel strips. The strip layout is user assignable and stored in Scenes. Use the Setup / Control / Strip Assign screen to edit the strip layout and enable the master section.

8. Strip Rotary Mode

   Select the function of the fader strip rotary encoders. The fader strip rotaries can control preamp Gain, Pan, Sends to the active Mix, and 3 assignable functions. Assign these using the Setup / Control / Preferences screen. The colour of the rotary LED matches the active function e.g. red for Gain, yellow for Pan; it follows the colour of the active Mix when in Sends mode. The Sends function puts control of send levels to the active Mix on the strip rotaries, while the faders control the channel levels to the main mix (i.e. it temporarily disables ‘sends on faders’)

9. Assign

   Hold down Assign, and press a strip Mix key to toggle routing assignment on or off. See later in this guide for more information.

10. GEQ on Faders

    Touch and hold GEQ, and touch a mix channel Name Block to present the GEQ on the faders. Frequency values are shown on the Name Blocks and the meters show RTA activity of each frequency band and peak band indication. While active, touch GEQ again to toggle between high and low frequencies. The mix master fader is presented on the right-hand strip while in this mode.

11. Armrest Illumination

    Change illumination settings in Setup / Control / Dimmer.

Fader strip

	Strip Rotaries – Their function is selected using the strip rotary mode keys described earlier in this chapter. The rotaries can control preamp Gain/Trim, Pan, Sends to the active Mix, and 3 user-assignable functions. The colour of the rotary LED matches the active function e.g. red for Gain, yellow for Pan; it follows the colour of the active Mix when in Sends mode. The value is displayed in the Name Block display
	Mute – Turns off the channel signal. Affects the main mix, pre-fade and post-fade sends. The switch illuminates when the signal is muted. Muted – Illuminates when the channel is muted by a DCA or Mute Group.
	Mix – Puts the send levels and assignments of the associated channel or masters onto the fader strips (or strip rotaries when rotaries are in Sends mode) ⓘ The currently active Mix is displayed in the top right corner of the Processing screen. Press an active Mix key to return to the main mix.
	PAFL – Sends the channel signal PFL (pre-fade listen) or AFL (after-fade listen) to the headphones and monitoring system. Preferences for the PAFL system are set using the Setup / Audio / PAFL screen.

Screens

Avantis has two screens, both showing channel processing, bank overview, system setup & status, memory management menus and more.

Each touchscreen integrates with a trio of user-configurable soft rotaries in addition to a Touch & Turn rotary control for quick and easy parameter modification.

Both screens operate independently of each other so, for example, two discrete channel processing screens can be visible simultaneously, or processing can be visible on one screen with IO patching visible on the other.

1. Screen Mode

Select the Screen Mode:

• Bank – Overview of all channels assigned to the fader Bank and Layer. Bank view can be used with the Copy, Paste, Reset, Freeze and Listen keys. In Bank view, touching any processing block – for example, a PEQ, Gate or Comp curve – opens the relevant Processing page.
• Processing – Access channel processing for the currently selected channel
• Routing – Access routing and assignments for the selected channel
• I/O – Patch system inputs and outputs by tapping on crosspoints
• Ganging – Create up to 16 gang groups to link selected parameters across multiple channels
• Meters – Access to Input, FX and Mix meters, RTA spectrogram and 4 user-customisable meter views.
• FX – Configure the 12 RackFX units.
• Scenes – Access to the Scene Manager, Global Safes and other scene tools
• Setup – Access to mixer strip layout, mixer bus configuration, softkey configuration, stereo input configuration, network settings, audio settings, user profiles, mixer preferences, illumination and more.
• Utility – Access the Show Manager, Library Manager, firmware update, system diagnostics, fader, and screen calibration, and MIDI options.

2. Menu Tabs

Menu options for the selected Screen Mode.

3. Status Bar

Icons are visible when certain modes of operation are active (Virtual Soundcheck, Solo In Place, Scene Update Auto Tracking, etc) or if a system error is logged.

4. Headphone Volume

Rotary volume control for the headphone output (right-hand side only)

5. View

Press to toggle between the configured views for the Soft Rotaries.

6. Soft Rotaries

Three soft rotaries for the control of user-assignable parameters.

7. Touch & Turn Control

Touch a parameter or setting in the main screen area and adjust its value with the rotary control. The currently selected parameter is highlighted in orange.

8. Name Block

Displays name, colour, channel type, number, metering information, and other channel parameters.

Touch a channel Name Block to select a channel for use with the Processing and Routing screens. When selected, the channel strip will be shaded green.

Each bank can have one channel selected. The currently selected channel is displayed in the top left corner of the screen.

9. Swipe Menu / Meters

Multi-page menu showing either PAFL meters or additional contextual options. Swipe the menu, or touch the circular page indicators, to scroll between the pages.

• Listen – Hold down Listen and touch any highlighted area of the screen to listen to that point in the signal path of the selected channel
• Options – Hold down Options and touch any highlighted area of the screen to configure it.
• Name / dB / IO – Tap to toggle between Name Block modes to display the user-defined channel Name, the fader position in dB, or the I/O socket identifier of the patched source/destination.
• Help – Touch to display contextual help for the active screen
• PAFL Meter

Mix Basics

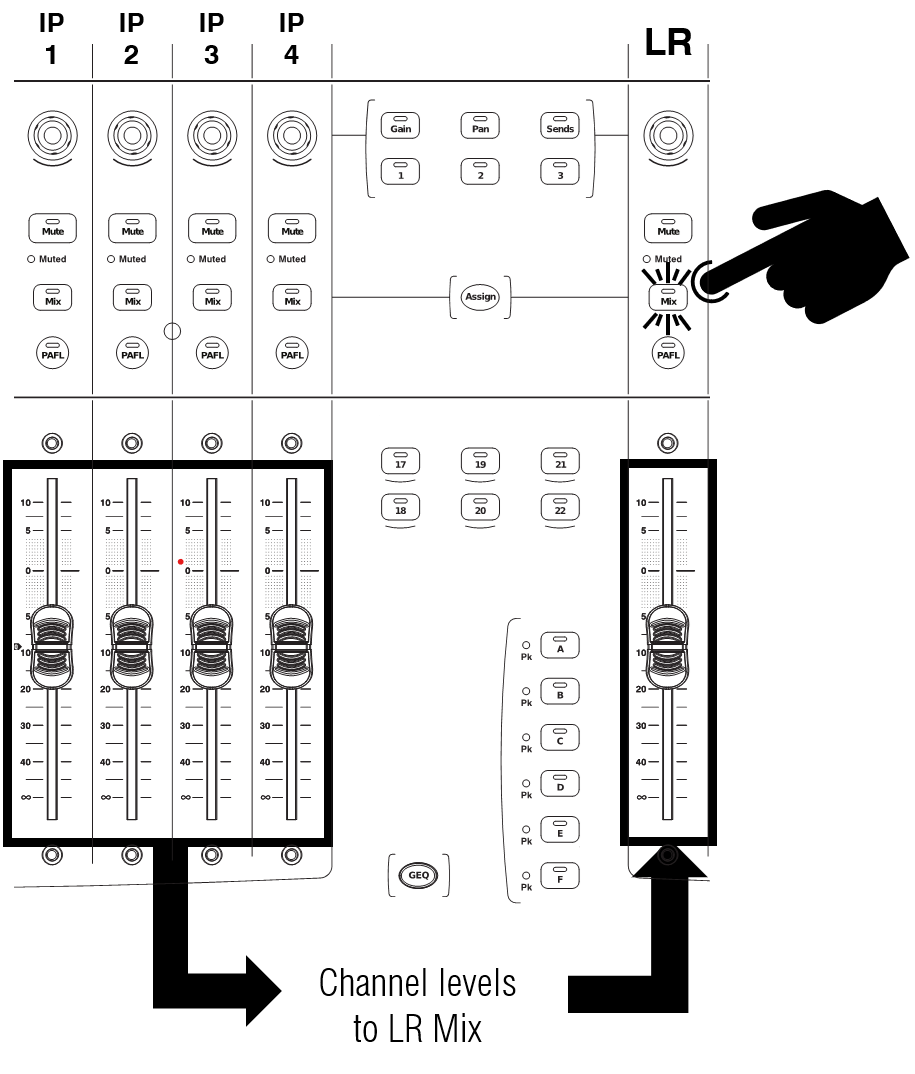

Working with the Main Mix

Press a Main Mix (e.g. LR) master strip Mix key.

This is the default mixing mode:

The Input strips present the channel faders.
The Master strips present the master mix faders.

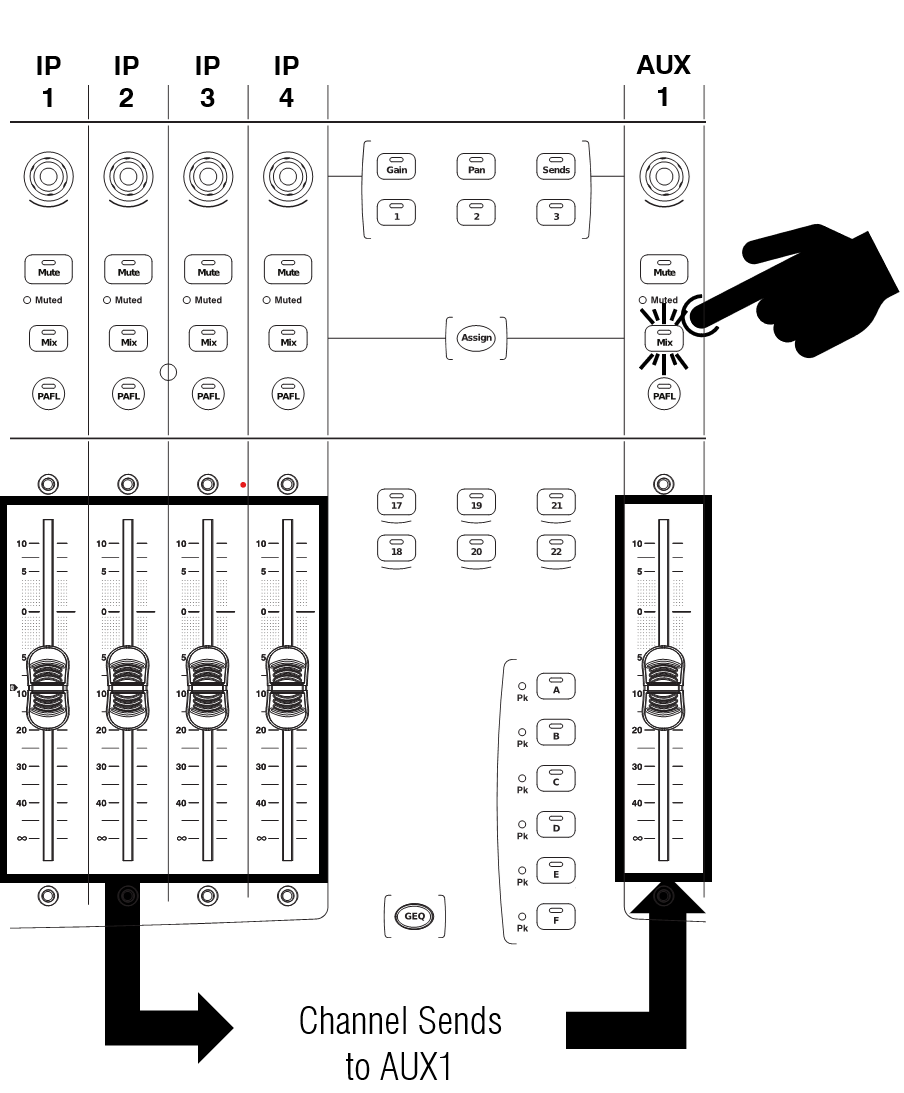

Working with Sends – Master Mix Mode

Press a Mix master strip Mix key (e.g. AUX 1)

Use this to work with Aux and FX sends.

The Input strips present all the send levels to the active Mix.

The Master strips present the master mix faders.

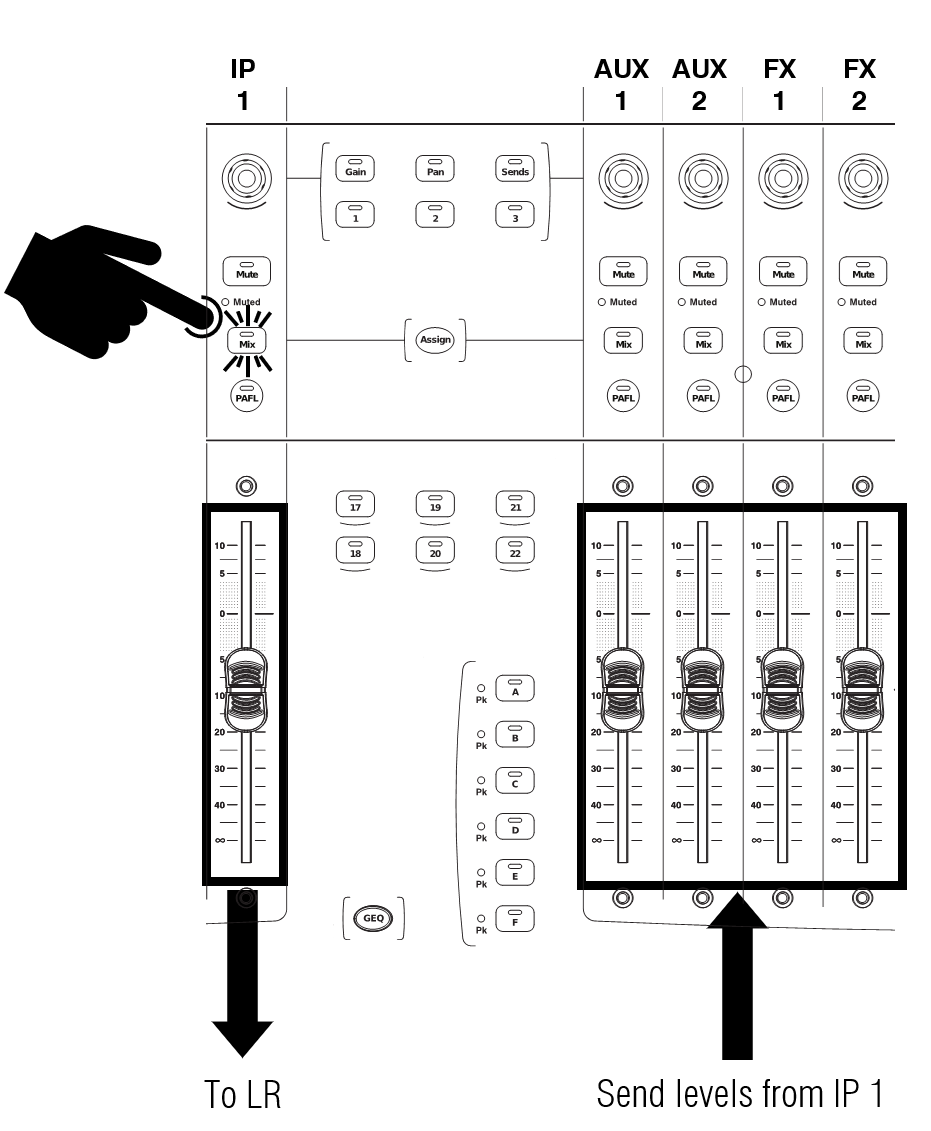

Working with Sends – Channel Mix Mode

Press an Input Channel strip Mix key (e.g. IP 1)

Use this to work with Aux and FX sends.

The Input strips remain as Channel Faders.

The Master strips present all sends from the Input channel.

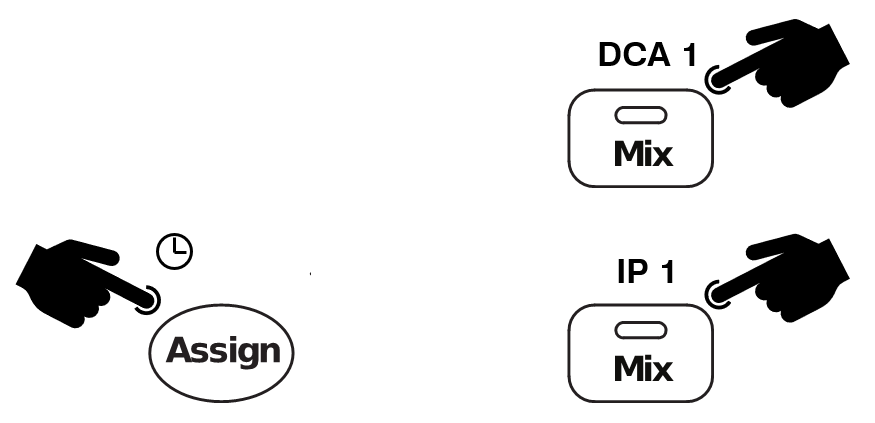

Assigning and un-assigning a channel to a Mix, Group or DCA

Press the Mix key on a Mix, Group or DCA master strip (e.g. DCA 1)

Hold down the Assign key and press channel Mix keys to assign or unassign them from the active mix. Assignment status is displayed in the Name Block.

You can quickly set all assignments to a Mix to On or Off by pressing the Mix button on a Mix Master, and then pressing and holding the Assign button while pressing the Mix button the Mix Master.

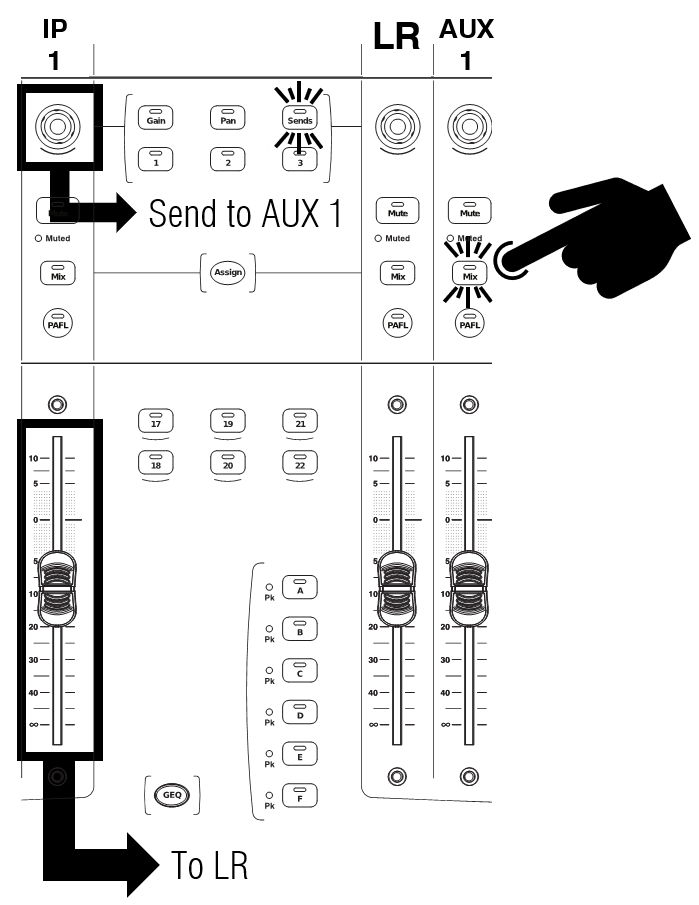

Changing between Sends on Faders and Sends on Rotaries

The default mixing mode is Sends on Faders.

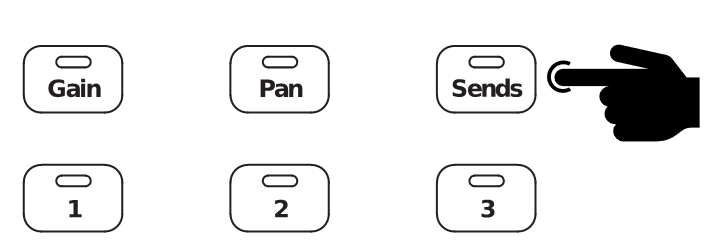

To activate Sends on Rotaries, press the Sends button in the Strip Rotary Mode section.

In Sends on Rotaries mode, Strip Rotaries are used to control send levels to the active mix, with the channel faders remaining as level controls to the Main Mix.

Setting Pre/Post fader send status

Hold down the Pre key and touch channel Name Blocks to toggle each source pre or post fader. Current Pre/Post status is displayed on the lower part of the Name Block.

You can quickly set all assignments pre or post fader by touching the Mix Master Name Block while holding Pre.

Flightcase Information
